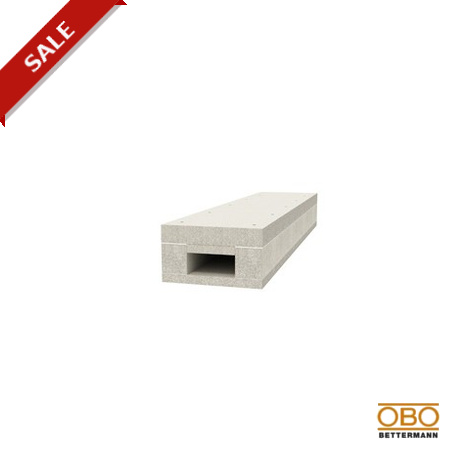

BSK 120511 7215216 OBO BETTERMANN Fire protection duct I120/E90 , 50x110mm, Grey, Glass-fibre lightweight co..

Reference: BSK 120511

Code: 7215216

Manufacturer: OBO BETTERMANN

Description:

Fire protection duct I120/E90 , 50x110mm, Grey, Glass-fibre lightweight concrete
Fire protection duct PYROLINE® Con D BSK I120/E90. Fire protection duct made from water and frost-proof fibreglass light concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I120 as I duct according to DIN 4102 Part 11 and classification E90 as E duct according to DIN 4102 Part 12.Mounting of the duct directly on walls or under ceilings.Including countersunk head screws and sealing strips.

Categories:

  • Fire protection systems > Fire-resistant duct
  • OBO BETTERMANN > BSS fire protection systems - OBO BETTERMANN > BSS Maintenance function - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ColourGrey
Cover fasteningScrew
Dimension50x110
Dimension b110 mm
Dimension B230 mm
Dimension h50 mm
Dimension H130 mm
Fire resistance class E − function maintenance90
Fire resistance class I − installation duct120
Height130 mm
JacketingWithout
Length1000 mm
MaterialFibreglass lightweight concrete
Material of the insulationGlass-fibre lightweight concrete
Number of flammable sides3
Partitions possibleyes
Usable cross-section5500 mm²
Width230 mm
With perforationno
