OBO BETTERMANNTBS Transient and lightning protection systems - OBO BETTERMANNAS 3x16 5012010 OBO BETTERMANN CONNECTION TERMINAL AS 3X16

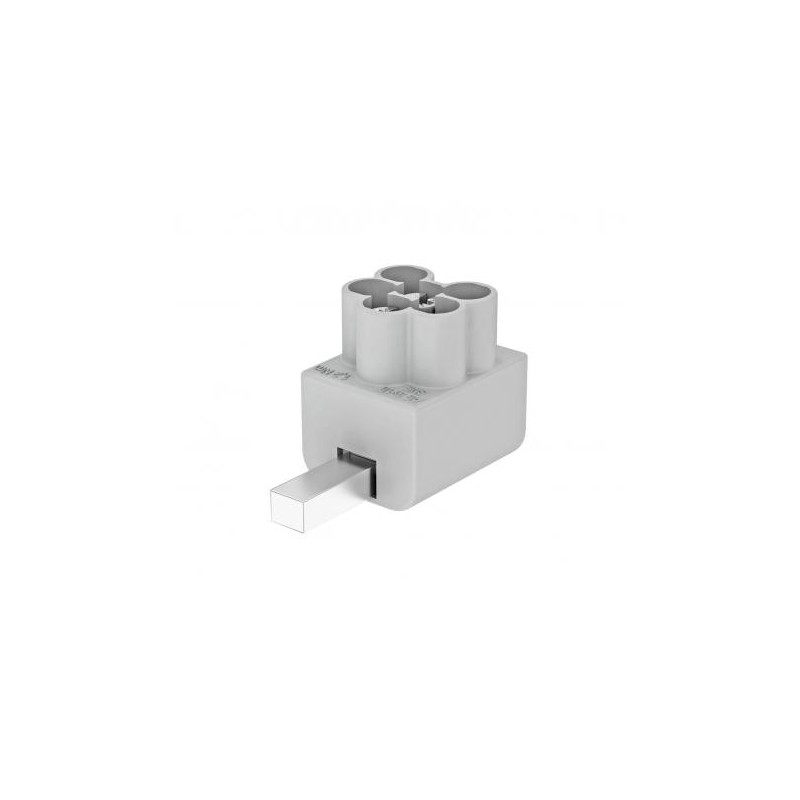

OBO BETTERMANN AS 3x16 5012010 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

AS 3x16 5012010 OBO BETTERMANN CONNECTION TERMINAL AS 3X16

Reference: AS 3x16

Code: 5012010

Manufacturer: OBO BETTERMANN

Description:

CONNECTION TERMINAL AS 3X16
Connection terminal for through-wiring. Connection terminal type: AS 3 x 16Connection cross-section: 3 x 1.5 - 16 mm² rigid/ multiple strands3 x 1.5 - 10 mm² fine-wire/with wire end sleeveStripping length: 16 mmRec. tightening torque: 1.2 NmNominal current: 50 AWidth: 17.5 mm (1 PU)For EMC-optimised V through-wiring to IEC 60364-5-53 (VDE 0100-534).

Categories:

  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 62,24 €

Unit Price: 12,449 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate1,3043 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Conductor cross-section, rigid (single-wire/multiwire), max.16 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.1,5 mm²
Dimension16mm²
Max. mains-side overcurrent protection50
Maximum back-up fuse50 A
OBO_Nominal load current (input/output terminal)50 A
Pole number3
Version for3 x 16 mm²

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE SURGE PROTECTION OBO EN
24 Mbytes
