OBO BETTERMANNEGS device systems - OBO BETTERMANNAR45-BSF2 AL 6119366 OBO BETTERMANN FRAME AR45-BSF2 AL

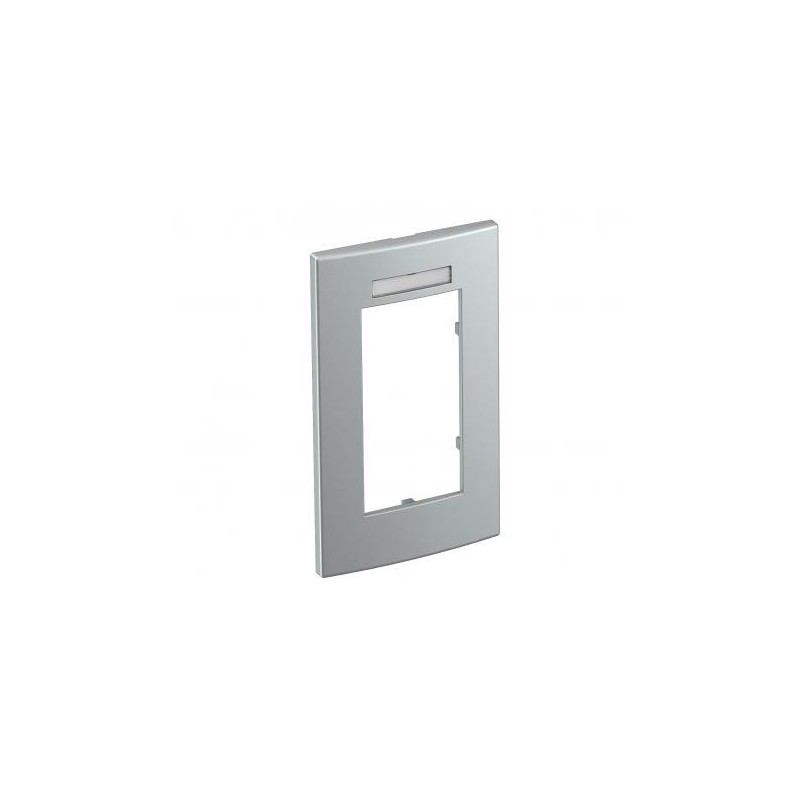

OBO BETTERMANN AR45-BSF2 AL 6119366 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

AR45-BSF2 AL 6119366 OBO BETTERMANN FRAME AR45-BSF2 AL

Reference: AR45-BSF2 AL

Code: 6119366

Manufacturer: OBO BETTERMANN

Description:

FRAME AR45-BSF2 AL
Cover frame AR45-BSF2, for accessory mounting box 71GD13, double, with labelling panel for vertical device installation. Front locking cover frame for Modul 45 devices, double, with labelling panel for vertical device installation, for locking in accessory mounting box 71GD13 or in mounting support 71MT2 45.For installation in Rapid 80 device installation trunking and ISS service poles.

Categories:

  • OBO BETTERMANN > EGS device systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 24,26 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Antibacterial treatmentno
Anzahl der Einheiten vertikal2
CO2 Footprint (GWP) Cradle-to-Gate0,0513 kg CO2e / 1 Piece
ColourAluminium painted
Depth8,5 mm
Dimension84x140mm
Einbaubreite90 mm
Fastening typeClamp fastening
Halogen-freeyes
Height140 mm
Hinged coverno
Installation height45 mm
MaterialPolycarbonate
Mounting directionVertical
Number of units2
Protection ratingOther
Suitable for built-in installationsyes
Suitable for device installation ductsyes
Suitable for flush-mounted installationsno
Suitable for underfloor duct socketno
Surface versionMatt
Text field/inscription fieldyes
Transparentno
Width84 mm
With mounting frameno
