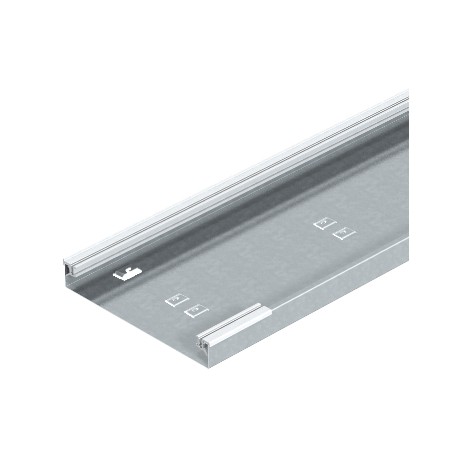

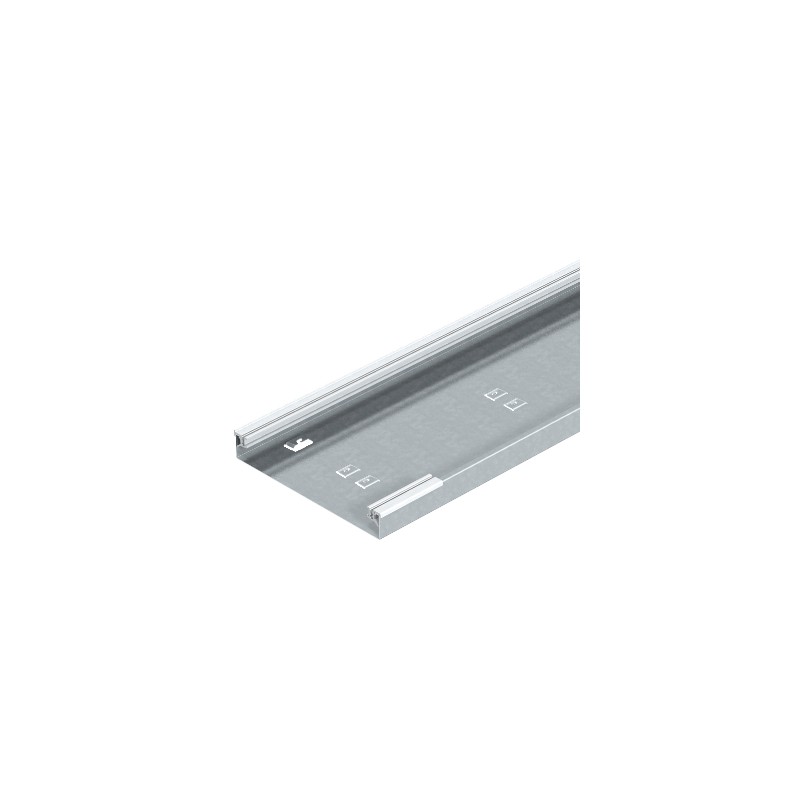

AIKU 25070 7404716 OBO BETTERMANN On-floor installation trunking, trunking height 70 mm
AIKU 25070
7404716
OBO BETTERMANN
On-floor installation trunking, trunking height 70 mm
On-floor installation trunking, trunking height 70 mm. On-floor junction installation trunking base, 1 compartment, for blanking lid with slope on one side, with plug-fit aluminium side profiles for layering and fixing the trunking lid, floor trough with holding shackles for max. two plug-in, separating retainers and groove for earth conductor clamp. Trunking height suitable for installation of service outlets of nominal size 2.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 15,7114 kg CO2e / 1 Meter |
|---|---|
| Cross-section, draw 3 | 6817 mm² |
| Cross-section, draw a | 6595 mm² |
| Cross-section, draw b | 2090 mm² |
| Dimension | 2400x250x70 |
| Dimension B | 250 mm |
| Dimension b | 250 mm |
| Dimension h | 70 mm |
| Height | 70 mm |
| Length | 2400 mm |
| Material | Steel |
|---|---|
| Number of compartments | 3 St. |
| Number of insertable partitions | 2 |
| Plate thickness, base | 1 mm |
| Separating retainer fastening | Plug |
| Suitable for | Cover sloping on one side |
| Surface | Strip galvanized |
| Usable cross-section | 155 cm² |
| Width | 250 mm |
| With separating retainer | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
