OBO BETTERMANNTBS Transient and lightning protection systems - OBO BETTERMANN925,375 5040051 OBO BETTERMANN CLAMP GROUNDING 925,375
OBO BETTERMANN 925 5040051 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

925,375 5040051 OBO BETTERMANN CLAMP GROUNDING 925,375

Reference: 925

Code: 5040051

Manufacturer: OBO BETTERMANN

Description:

CLAMP GROUNDING 925,375

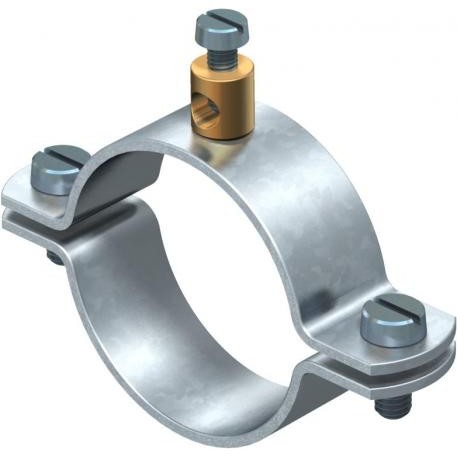

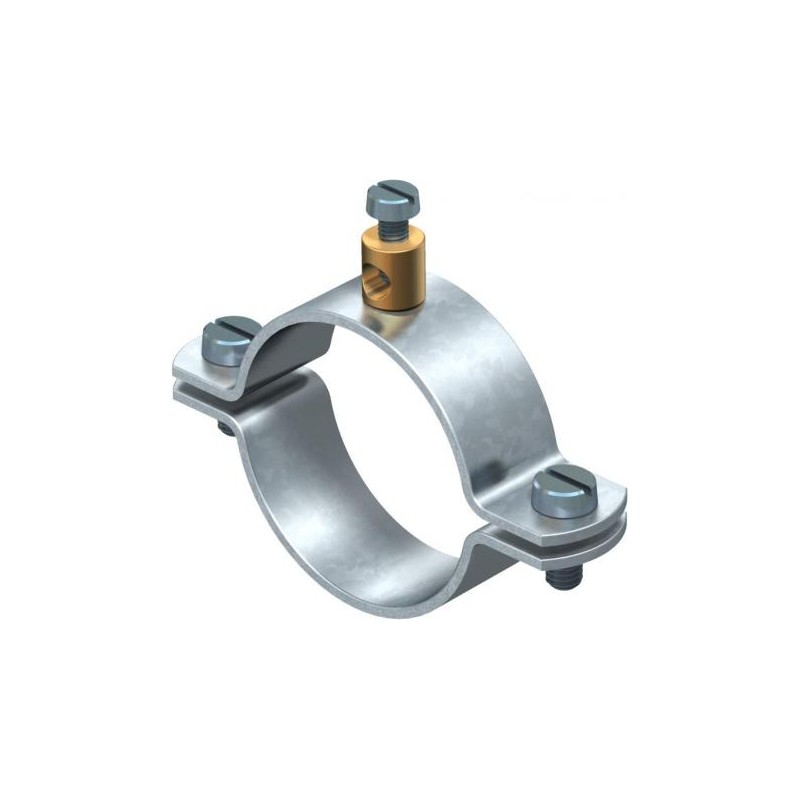

Earthing clamp, type 925. • For pipes 1/4"-1½" or Ø 11.5-48.3 mm• Connection options: conductors to 16 mm² with connecting terminal, riveted with brass and 1 cylinder bolt M5 x 12• To 1½" with 2 cylinder bolts M6 x 16 (G)

Categories:

  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 77,66 €

Unit Price: 3,1066 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Clamping range D3/8
Clamping range D, max.17,2 mm
Clamping range D, min.15,2 mm
CO2 Footprint (GWP) Cradle-to-Gate0,1049 kg CO2e / 1 Piece
Cross-section of cable to be connected, max.16 mm²
Dimension3/8"
Dimension A52 mm
Dimension b18 mm
Dimension D17,2 mm
Dimension X2 mm
For pipe diameter, max.17,2 mm
For pipe diameter, min.15,2 mm
MaterialSteel
Number of conductors1
SurfaceElectrogalvanized

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE SURGE PROTECTION OBO EN
24 Mbytes
