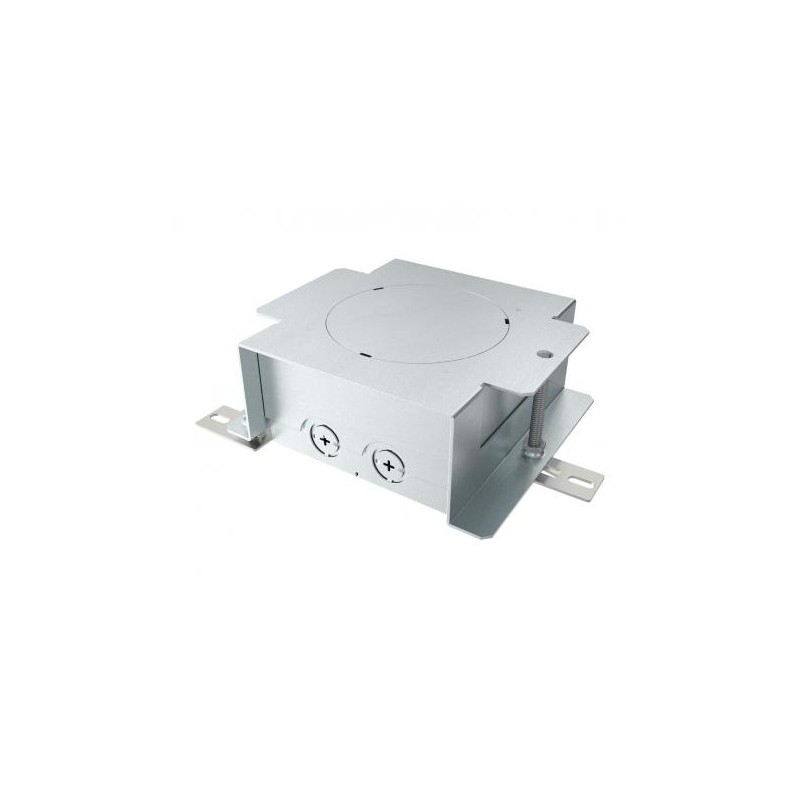

OBO BETTERMANN UD GES R2 7428526 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

7428526 OBO BETTERMANN BOX PAVEMENT GES R2 UD GES R2

Reference: UD GES R2

Code: 7428526

Manufacturer: OBO BETTERMANN

Description:

BOX PAVEMENT GES R2 UD GES R2
Screed box for GES R2. Height-adjustable screed box for the installation of the installation socket of the GES R2 floor socket.With 2x2 insertion openings for installation pipes (M20/M25).

Categories:

  • Sub-floor systems > Outlet box for underfloor installation
  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 104,80 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate7,6782 kg CO2e / 1 Piece
Decouplableno
Expansion optionFor installation of accessories
Floor plateyes
For pipe connectionyes
Height-adjustment range, max.130 mm
Height-adjustment range, min.85 mm
Installation diameter122
Installation opening for flush-mount unitRound
MaterialSteel
Minimum screed height85
Screed height, max.130 mm
Screed height, min.85 mm
Seal installation optionno
Suitable for cavity floor installationno
Suitable for raised floor installationno
Suitable for screed-covered underfloor ductsno
Suitable for screed-flush closed underfloor ductsno
Suitable for underfloor ductsno
SurfaceStrip galvanized
Version forRound
