OBO BETTERMANNUFS Underfloor piping systems - OBO BETTERMANNUZD 115170 350-3 7410047 OBO BETTERMANN FLUSH BOX UZD 115170 350-3

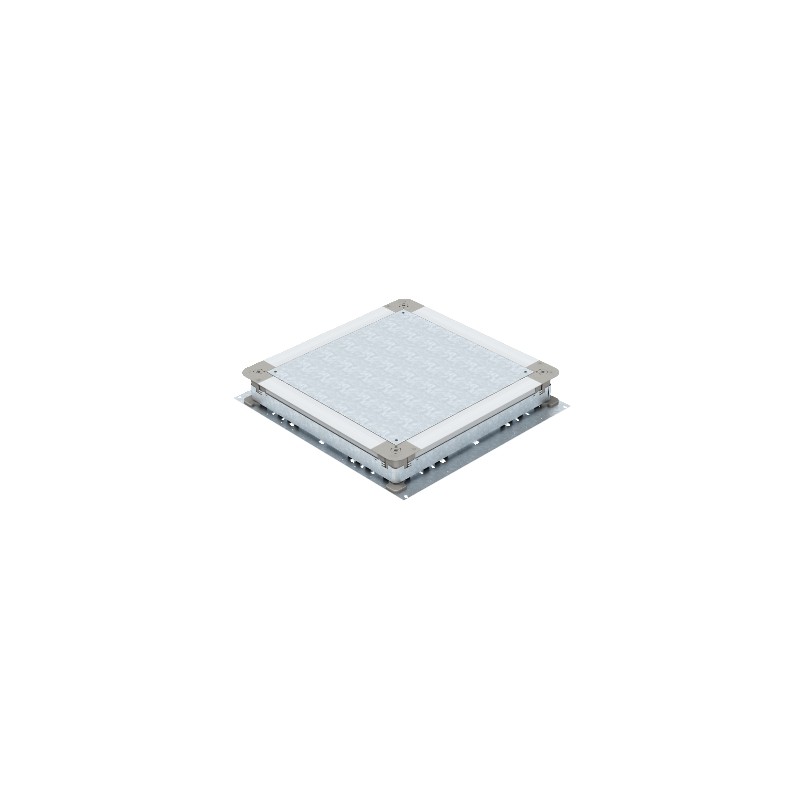

OBO BETTERMANN UZD 115170 350-3 7410047 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

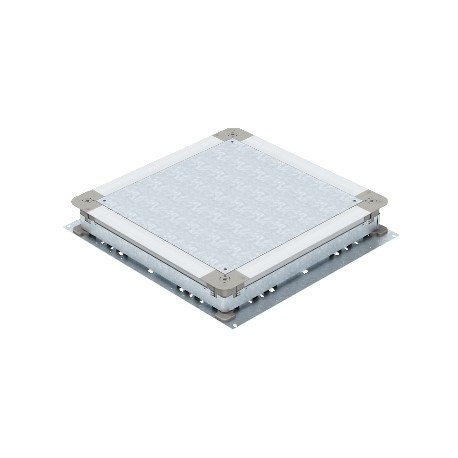

UZD 115170 350-3 7410047 OBO BETTERMANN FLUSH BOX UZD 115170 350-3

Reference: UZD 115170 350-3

Code: 7410047

Manufacturer: OBO BETTERMANN

Description:

FLUSH BOX UZD 115170 350-3
Derivation box. and reg. UZD 115170 350-3, for height 115-170mm 510x467x115 Steel, St, galvanized strip, DIN EN 10346

Categories:

  • Sub-floor systems > Service box for underfloor installation
  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Underfloor junction and branch box for screed-covered underfloor installation systems.

ETIM for 7410047 Underfloor trunking and floor boxes (EC000893)

Feature nameNominal dimension (EF000132)
Feature value350 mm
Feature nameMin. height finishing layer (EF007935)
Feature value115 mm
Feature nameLevelling range (EF005136)
Feature value115 mm
Feature nameSuitable for subfloor duct countersunk (closed) (EF005792)
Feature valueYes
Feature nameSuitable for subfloor duct overhead closed (EF006408)
Feature valueNo
Feature nameDuct height (EF005459)
Feature value28 mm
Feature nameDuct width (EF007884)
Feature value190 mm
Feature nameBuilt-in opening for floor column (EF004641)
Feature valueNo
Feature nameMaterial side wall (EF008133)
Feature valueSteel
Feature nameSuitable for placing of sealing (EF004594)
Feature valueYes
Feature nameDecoupling possibility cover from base unit (EF007745)
Feature valueYes
Feature nameBottom plate (EF004544)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
7410047 OBO BETTERMANN FLUSH BOX UZD 115170 350-3
52 Kbytes
PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN
42 Mbytes
