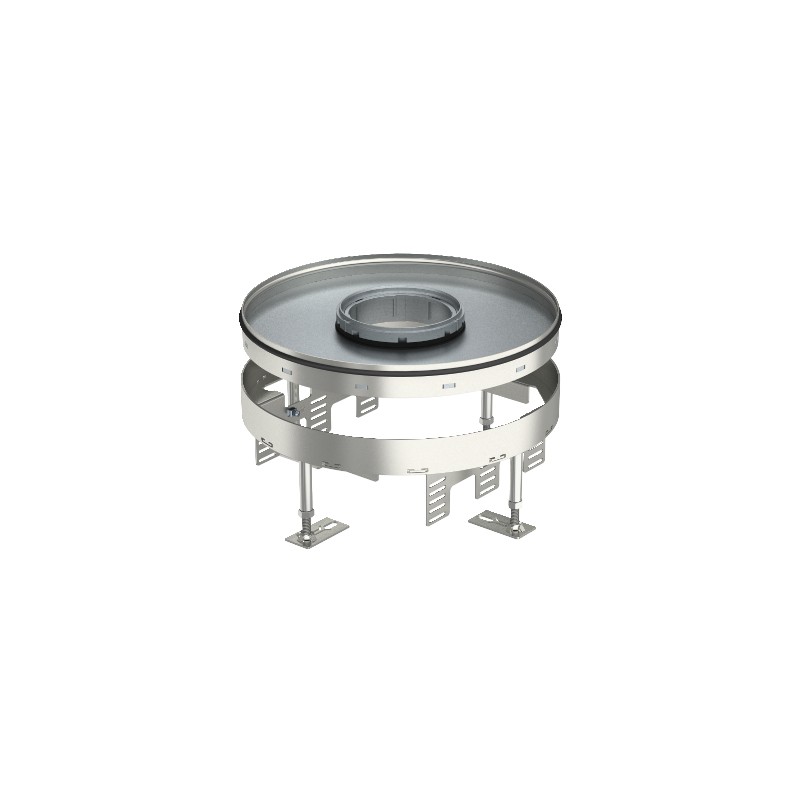

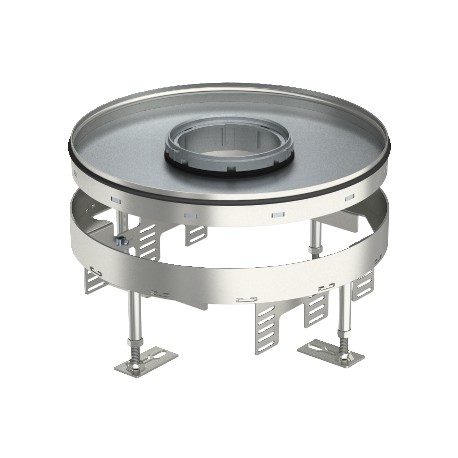

7409430 OBO BETTERMANN COVER AND FRAME TUB RKFR2 9 V20
RKFR2 9 V20
7409430
OBO BETTERMANN
COVER AND FRAME TUB RKFR2 9 V20
Height-adjustable cassette for tube body, RKFR, stainless steel. Height-adjustable cassette of nominal size R9 for tube body for installation of accessories in dry or wet-cleaned floors for indoor use.Height-adjustable cassette for tube body, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of three UT4 universal supports for nine single accessories with support ring/support clamp or 12 Modul 45 devices. The tube body is not contained in the scope of delivery.Height-adjustable round cassette, 3-compartment, for tube bodies of nominal size 9 for the intallation of accessories. Cassette for the use in trunking systems and in raised and cavity floors in dry- or wet-cleaned floors in indoor areas.Suitable only for smooth floor coverings.Three cover plates APMT5 can
Sub-floor systems > Levelling cassette for duct mounting, raised and underfloor installation
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | Lowerable tube body |
| CO2 Footprint (GWP) Cradle-to-Gate | 19,5393 kg CO2e / 1 Piece |
| Decouplable | no |
| Device support to accept mounting boxes | yes |
| Dimension | Ø305mm |
| Floor care | Wet |
| Floor covering thickness | 20 mm |
| Floor height, max. | 155 mm |
| Floor height, min. | 110 mm |
| Heavy-duty version | no |
| Height-adjustment range, max. | 155 mm |
| Height-adjustment range, min. | 110 mm |
| Installation depth | 110 mm |
| Installation diameter | 305 |
| Installation system type | UT4 |
| Length | 304 mm |
|---|---|
| Material | Stainless steel 1.4301 |
| Nominal size for device installation units | R9 |
| Number of cable outlets | 1 |
| Number of installable devices | 12 |
| Number of mounting boxes | 3 |
| Protection rating (IP) when unused | IP44 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Version for | Round |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 304 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
| 7409430 OBO BETTERMANN COVER AND FRAME TUB RKFR2 9 V20 | 61 Kbytes |
|
