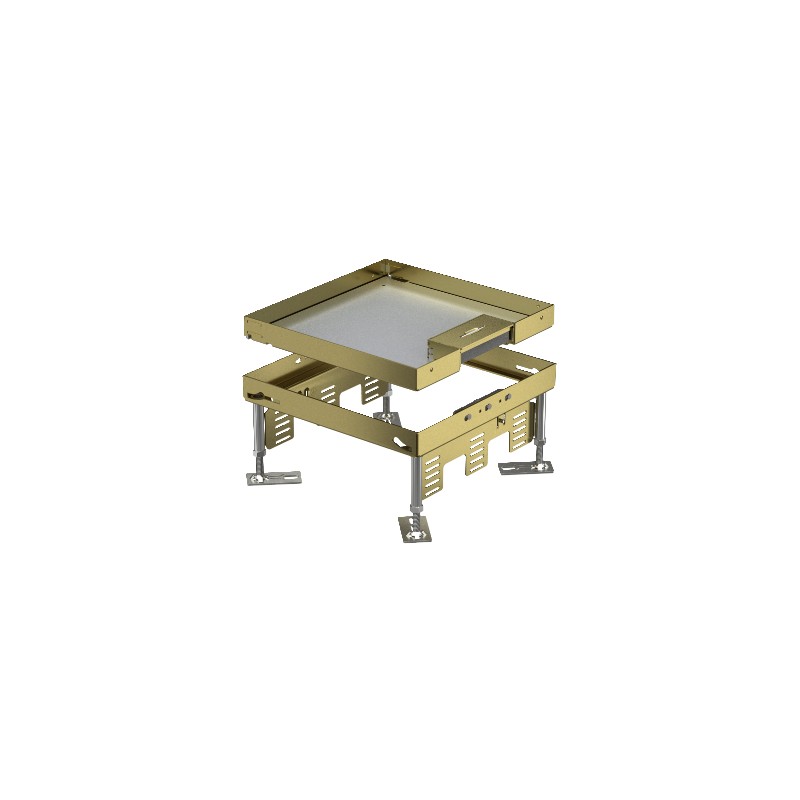

OBO BETTERMANN RKSN2 9 MS 20 7409212 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

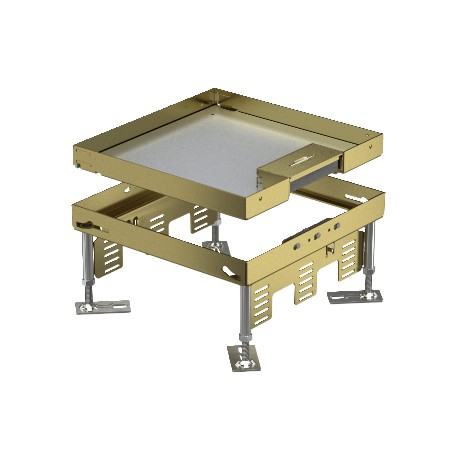

RKSN2 9 MS 20 7409212 OBO BETTERMANN CAP AND MARCO SQ RKSN2 9 MS 20

Reference: RKSN2 9 MS 20

Code: 7409212

Manufacturer: OBO BETTERMANN

Description:

CAP AND MARCO SQ RKSN2 9 MS 20
RKSN2 9 MS 20 square cover and frame set, with cable outlet 243x243mm Brass, CuZn,
Height-adjustable cassette with cord outlet, RKSN, brass. Height-adjustable cassette of nominal size 9 with cord outlet, for the installation of accessories in dry-cleaned floors indoors.For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 6 Modul 45® devices.Height-adjustable square cassette, 3-compartment, with cord outlet of nominal size 9 for the installation of accessories. Suitable for the use in trunking systems, raised and cavity floors in dry- and wet-cleaned floors in indoor areas. Three cover plates APMT5 can be installed. Suitable only for smooth floor coverings.

Categories:

  • Sub-floor systems > Levelling cassette for duct mounting, raised and underfloor installation
  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 443,98 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ApprovalsVDE
Cable outlet versionSwivellable cord outlet
CO2 Footprint (GWP) Cradle-to-Gate14,0497 kg CO2e / 1 Piece
Decouplableno
Device support to accept mounting boxesyes
Dimension243x243mm
Dimension h105 mm
Floor careDry
Floor covering thickness20 mm
Floor height, max.150 mm
Floor height, min.105 mm
Heavy-duty versionno
Height-adjustment range, max.150 mm
Height-adjustment range, min.105 mm
Installation depth105 mm
Installation system typeUT4
Length of installation dimensions244 mm
MaterialBrass
Nominal size350 mm
Nominal size for device installation units9
Number of cable outlets1
Number of installable devices12
Number of mounting boxes3
Protection rating (IP) when unusedIP40
Protection rating (IP) when usedIP20
Protection rating IK codeIK10
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Version forSquare
Vertical load, large areato 5,000 N
Vertical load, small areato 3,000 N
Wide installation dimensions244 mm

ETIM for 7409212 Underfloor trunking and floor boxes (EC002603)

Feature nameNominal dimension (EF000132)
Feature value350 mm
Feature nameMin. built-in depth (EF005027)
Feature value105 mm
Feature nameLevelling height (EF007999)
Feature value105 mm
Feature nameFloor maintenance (EF004546)
Feature valueDry
Feature nameModel (EF000010)
Feature valueSquare
Feature nameMaterial (EF002169)
Feature valueBrass
Feature nameNumber of conduit outlets (EF004424)
Feature value1
Feature nameType of conduit outlet (EF004474)
Feature valueSwivelling
Feature nameChassis part for device cups (EF004750)
Feature valueYes
Feature nameLength built-in dimension (EF004875)
Feature value244 mm
Feature nameWidth built-in dimension (EF004566)
Feature value244 mm
Feature nameNumber of appliances to build in (EF000219)
Feature value12
Feature nameNumber of device cups (EF000436)
Feature value3
