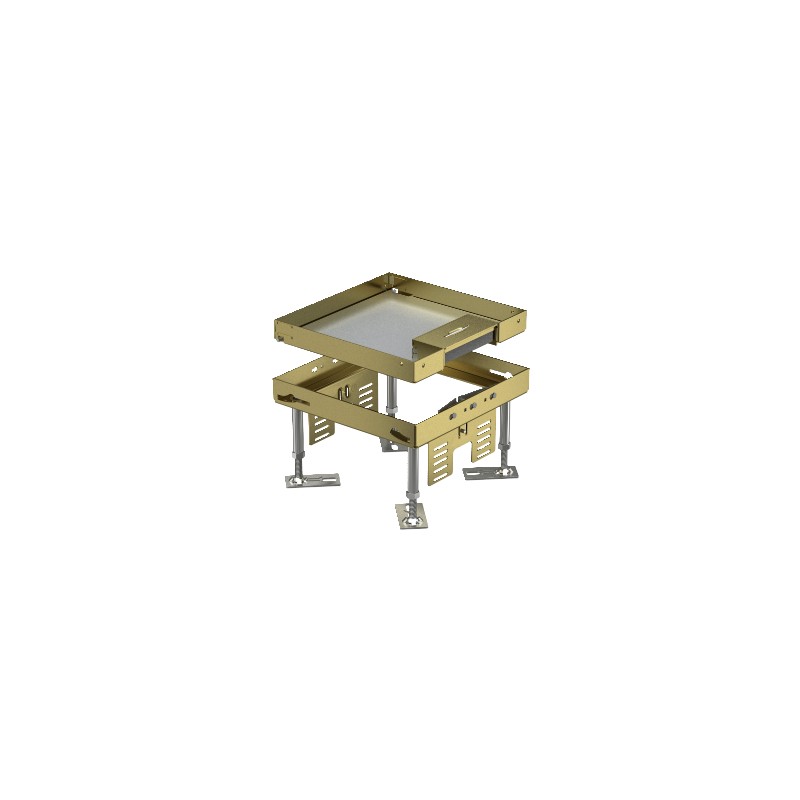

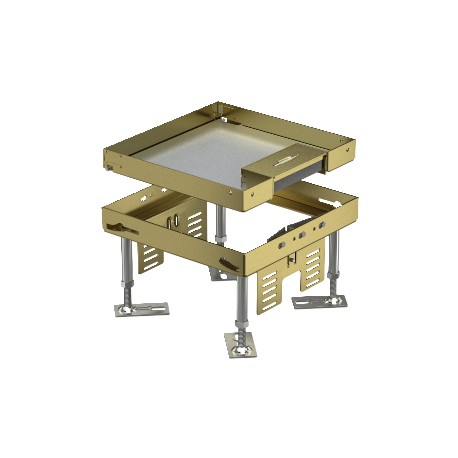

7409202 OBO BETTERMANN CAP AND MARCO SQ RKSN2 4 MS 20
RKSN2 4 MS 20
7409202
OBO BETTERMANN
CAP AND MARCO SQ RKSN2 4 MS 20
Height-adjustable cassette with cord outlet, RKSN, brass. Height-adjustable cassette of nominal size 4 with cord outlet for installation of accessories in dry-care floors for indoor use.Height-adjustable cassette for cord outlet, 2-compartment. 2 APMT2 cover plates can be installed. For the installation of 2 UT3 universal supports for 4 individual installation devices with support ring/support clamp or 6 Modul 45 devices.
Sub-floor systems > Levelling cassette for duct mounting, raised and underfloor installation
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | Swivellable cord outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 10,8531 kg CO2e / 1 Piece |
| Decouplable | no |
| Device support to accept mounting boxes | yes |
| Dimension | 200x200mm |
| Dimension h | 105 mm |
| Floor care | Dry |
| Floor covering thickness | 20 mm |
| Floor height, max. | 150 mm |
| Floor height, min. | 105 mm |
| Heavy-duty version | no |
| Height-adjustment range, max. | 150 mm |
| Height-adjustment range, min. | 105 mm |
| Installation depth | 105 mm |
| Installation system type | UT3 |
| Length of installation dimensions | 201 mm |
|---|---|
| Material | Brass |
| Nominal size for device installation units | 4 |
| Number of cable outlets | 1 |
| Number of installable devices | 6 |
| Number of mounting boxes | 2 |
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Version for | Square |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Wide installation dimensions | 201 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
| 7409202 OBO BETTERMANN CAP AND MARCO SQ RKSN2 4 MS 20 | 57 Kbytes |
|
