7408870 OBO BETTERMANN UNIT P/MECAN ALLEN GES R2B Or
GES R2B Ni
7408870
OBO BETTERMANN
UNIT P/MECAN ALLEN GES R2B Or

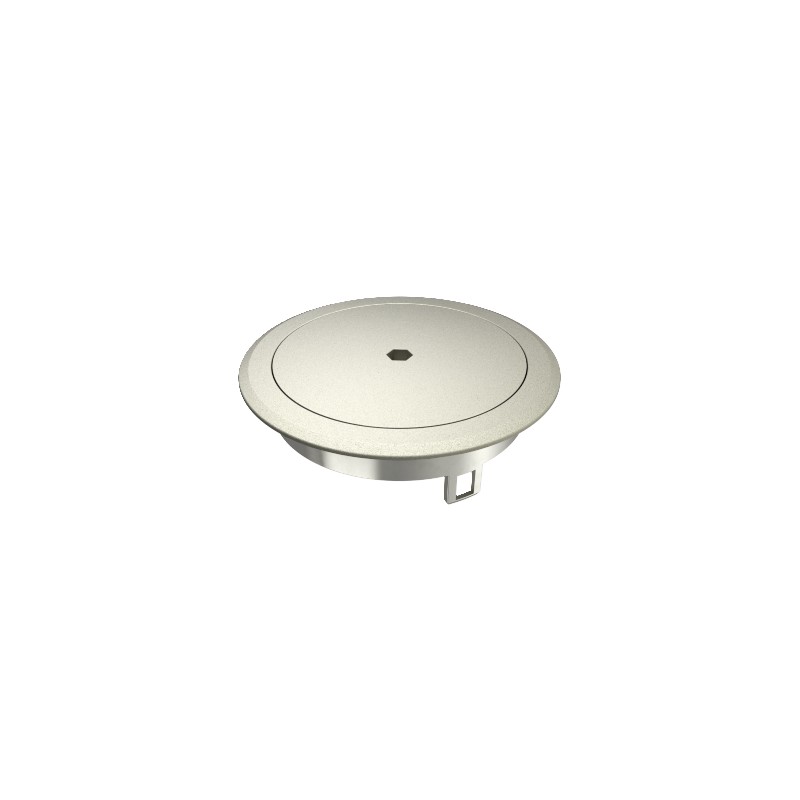

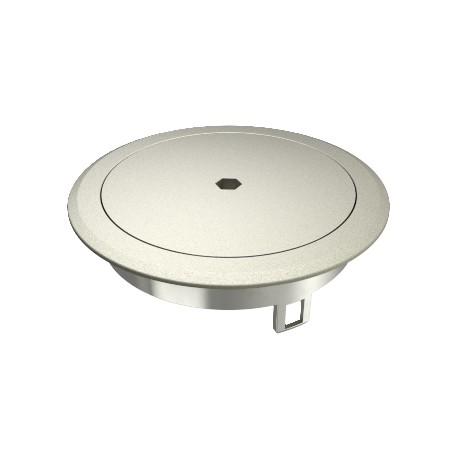

Service outlet with blanking cover and Allen slot, GES R2, nickel. Service outlet with blanking cover and Allen slot for GES R2 floor socket for direct installation in the MT R2 installation socket in indoor areas.The cover version can be used as a cable outlet.When closed, the floor socket can be wet-cleaned.
Sub-floor systems > Installation box for underfloor-installation
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | No cable outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,175 kg CO2e / 1 Piece |
| External diameter | 140 mm |
| Floor care | Wet |
| Floor covering protection frame | yes |
| Material | Die-cast zinc |
| Opening mechanism | Tool |
| Protection rating (IP) when unused | IP66 |
| Protection rating IK code | IK10 |
| Standard | EN 50085-2-2 |
|---|---|
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for underfloor ducts | no |
| Suitable for wet care | yes |
| Surface | Nickel-plated |
| Version for | Round |
| Vertical load, large area | to 15,000 N |
| Vertical load, small area | to 3,000 N |
| With floor covering recess | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
| 7408870 OBO BETTERMANN UNIT P/MECAN ALLEN GES R2B Or | 51 Kbytes |
|
