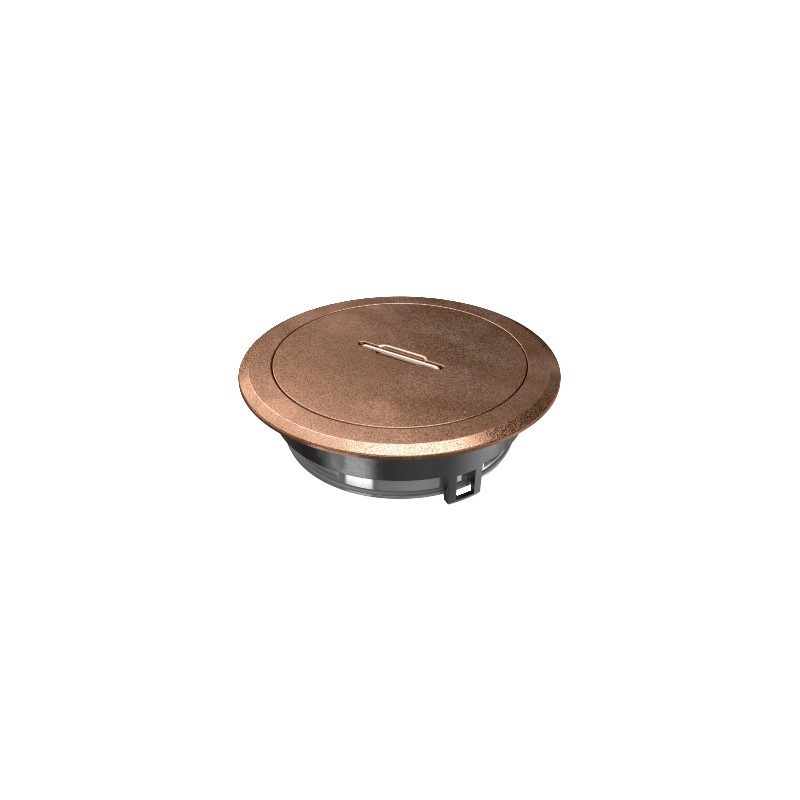

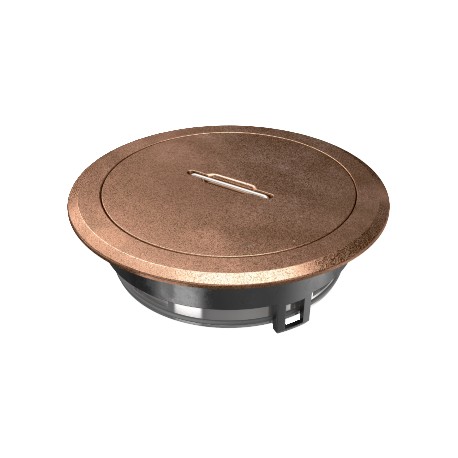

7408864 OBO BETTERMANN UNIT P/MECAN T. TEL GES R2T Cu
GES R2T Cu
7408864
OBO BETTERMANN
UNIT P/MECAN T. TEL GES R2T Cu
Service outlet with tube body with handle clamp, GES R2, old copper. Service outlet with tube body and handle clamp for GES R2 floor socket for direct installation in the MT R2 installation socket for indoor use.The tube body fulfils the requirements of EN 50085-2-2 for wet-cleaned floors, also when in use.
Sub-floor systems > Installation box for underfloor-installation
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | Lowerable tube body |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,9104 kg CO2e / 1 Piece |
| External diameter | 140 mm |
| Floor care | Wet |
| Floor covering protection frame | yes |
| Material | Die-cast zinc |
| Opening mechanism | Handle |
| Protection rating (IP) when unused | IP66 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Standard | EN 50085-2-2 |
|---|---|
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for underfloor ducts | no |
| Suitable for wet care | yes |
| Surface | Copper-plated |
| Version for | Round |
| Vertical load, large area | to 15,000 N |
| Vertical load, small area | to 3,000 N |
| With floor covering recess | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
| 7408864 OBO BETTERMANN UNIT P/MECAN T. TEL GES R2T Cu | 59 Kbytes |
|
