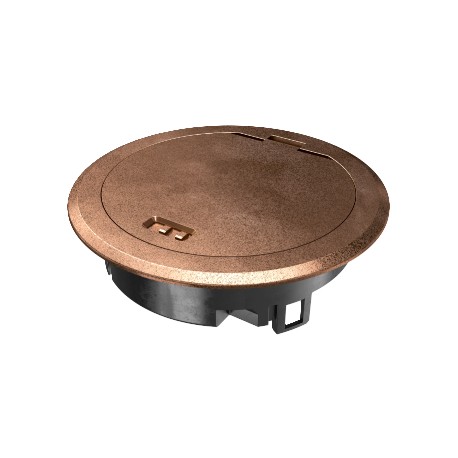

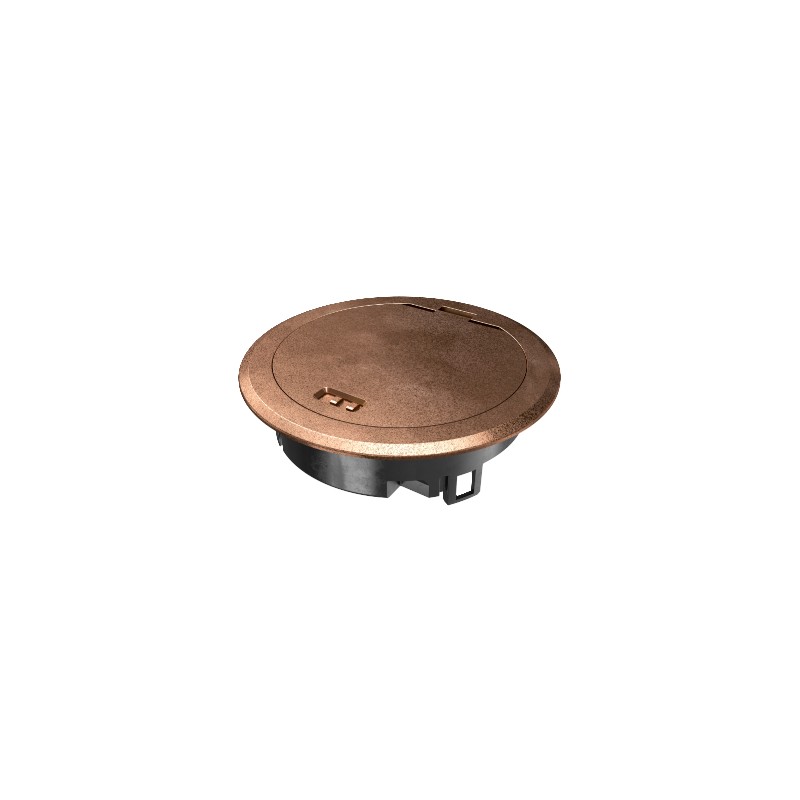

7408854 OBO BETTERMANN UNIT P/MECAN T. ABAT GES R2 Cu
GES R2 Cu
7408854
OBO BETTERMANN
UNIT P/MECAN T. ABAT GES R2 Cu
Service outlet with hinged cover and locking slider, GES R2, old copper. Service outlet with hinged cover and locking slider for GES R2 floor socket for direct installation in the MT R2 installation socket.When closed, the floor socket can be wet-cleaned.
Sub-floor systems > Installation box for underfloor-installation
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | Swivellable cord outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5215 kg CO2e / 1 Piece |
| External diameter | 140 mm |
| Floor care | Wet |
| Floor covering protection frame | yes |
| Installation depth | 85 mm |
| Material | Die-cast zinc |
| Opening mechanism | Locking slider |
| Protection rating (IP) when unused | IP66 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
|---|---|
| Standard | EN 50085-2-2 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for underfloor ducts | no |
| Suitable for wet care | yes |
| Surface | Copper-plated |
| Version for | Round |
| Vertical load, large area | to 15,000 N |
| Vertical load, small area | to 3,000 N |
| With floor covering recess | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
| 7408854 OBO BETTERMANN UNIT P/MECAN T. ABAT GES R2 Cu | 59 Kbytes |
|
