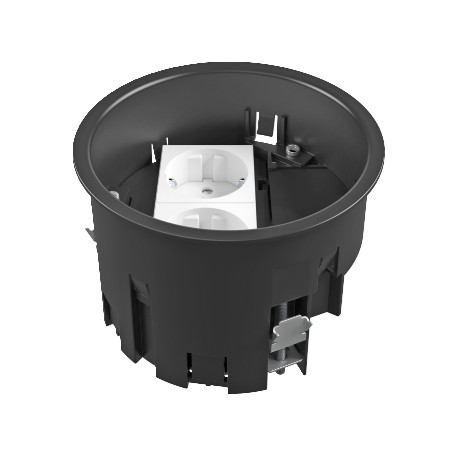

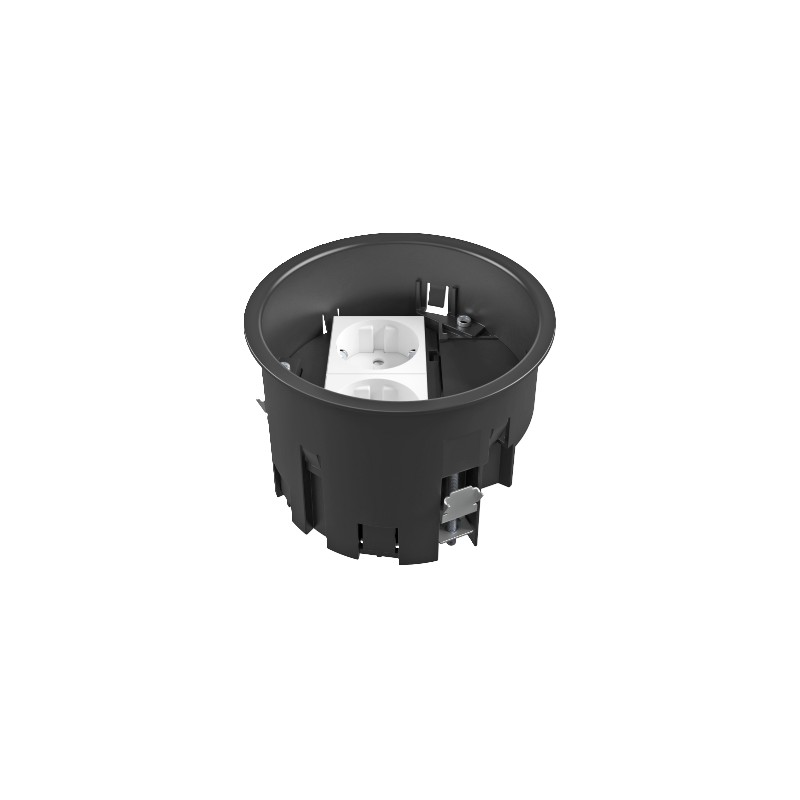

7408832 OBO BETTERMANN BUCKET GESR2 P/2XVDE MT R2 VDE
MT R2 VDE
7408832
OBO BETTERMANN
BUCKET GESR2 P/2XVDE MT R2 VDE
Installation socket, double, VDE. Installation socket for GES R2 floor socket for mounting in UD GES R2 screed box and in raised floor plates.
Sub-floor systems > Installation box for underfloor-installation
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Often bought together
▲Best sellers
▲More info
▲| Clamping range D, max. | 50 mm |
|---|---|
| Clamping range D, min. | 25 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,125 kg CO2e / 1 Piece |
| Colour | Graphite black; RAL 9011 |
| Cover version | Round |
| Device support to accept mounting boxes | no |
| Device type | Grid M45 |
| Equipment | Double VDE socket |
| External diameter | 131 mm |
| Floor covering protection frame | no |
| Installation depth | 85 mm |
| Installation diameter | 122 |
| Installation technology | Grid M45 |
|---|---|
| Material | Polyamide |
| Number of installable devices | 2 |
| Number of strain reliefs | 1 |
| Seal installation option | yes |
| Strain relief option | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for underfloor ducts | no |
| Suitable for wet care | no |
| With floor covering recess | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
| 7408832 OBO BETTERMANN BUCKET GESR2 P/2XVDE MT R2 VDE | 53 Kbytes |
|
