7405086 OBO BETTERMANN UNIT P/MECAN BLIND GES R2B 7011
GES R2B 7011
7405086
OBO BETTERMANN
UNIT P/MECAN BLIND GES R2B 7011

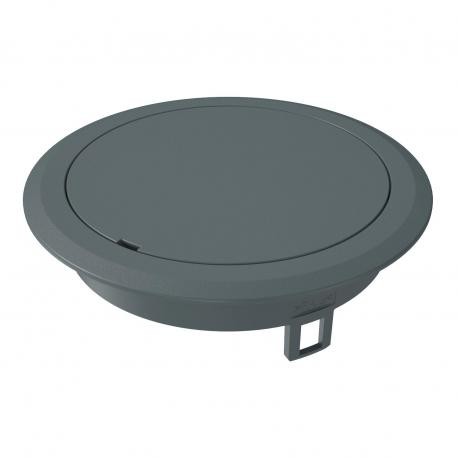

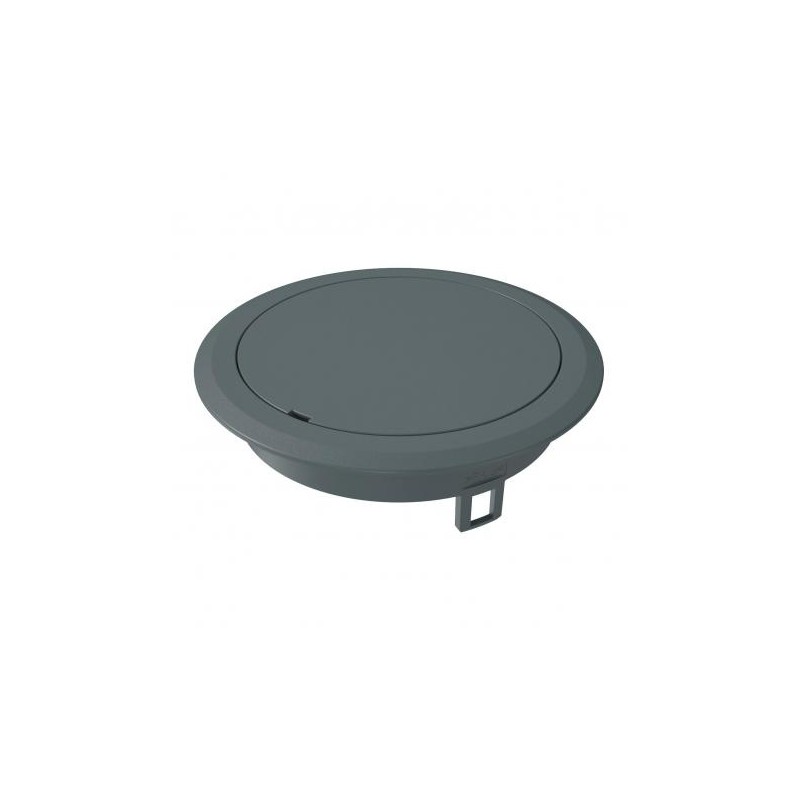

Service outlet with blanking cover and opening contour, GES R2. Service outlet with blanking cover and opening contour for GES R2 floor socket for direct installation in the MT R2 installation socket.For use in dry-cleaned floors for indoor use.
Sub-floor systems > Installation box for underfloor-installation
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | No cable outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4501 kg CO2e / 1 Piece |
| Colour | Iron grey; RAL 7011 |
| Dimension | 140x140x40 |
| External diameter | 140 mm |
| Floor care | Dry |
| Floor covering protection frame | yes |
| Material | Polyamide |
| Opening mechanism | Tool |
| Protection rating (IP) when unused | IP40 |
|---|---|
| Protection rating IK code | IK10 |
| Standard | EN 50085-2-2 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for underfloor ducts | no |
| Suitable for wet care | no |
| Version for | Round |
| Vertical load, small area | to 500 N |
| With floor covering recess | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
| 7405086 OBO BETTERMANN UNIT P/MECAN BLIND GES R2B 7011 | 48 Kbytes |
|
