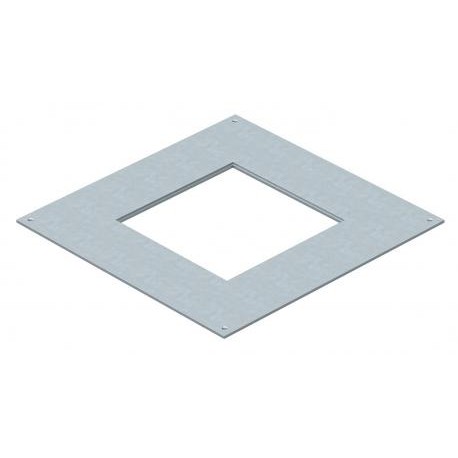

7400505 OBO BETTERMANN COVER ASSEMBLY DUG 350-3 4
DUG 350-3 4
7400505
OBO BETTERMANN
COVER ASSEMBLY DUG 350-3 4
Mounting cover 350, nominal size 4. Mounting lid for underfloor junction and branch box of type UZD350-3 and UZD350-4 for the installation or creation of an installation unit. Installation opening 3 mm recessed as a later blanking lock with lid blind plate.
Sub-floor systems > Mounting cover for underfloor draw-in box
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 11,2081 kg CO2e / 1 Piece |
|---|---|
| Dimension | 383x383x4 |
| Dimension A | 383 mm |
| Dimension a | 201 mm |
| Floor care | Dry |
| Heavy-duty version | no |
| Installation opening for on-floor tank | no |
| Length | 383 mm |
| Material | Steel |
| Material thickness | 4 mm |
| Mounting opening | Square |
| Mounting opening cover | no |
|---|---|
| Nominal size | 350 mm |
| Nominal size for device installation units | 4 |
| Seal installation option | no |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Surface | Strip galvanized |
| Trunking width, max. | 350 mm |
| Trunking width, min. | 190 mm |
| Width | 383 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
| 7400505 OBO BETTERMANN COVER ASSEMBLY DUG 350-3 4 | 47 Kbytes |
|
