OBO BETTERMANNBSS fire protection systems - OBO BETTERMANNTK 16 7205706 OBO BETTERMANN BORNE CERAMIC TK16 FIREBOX T

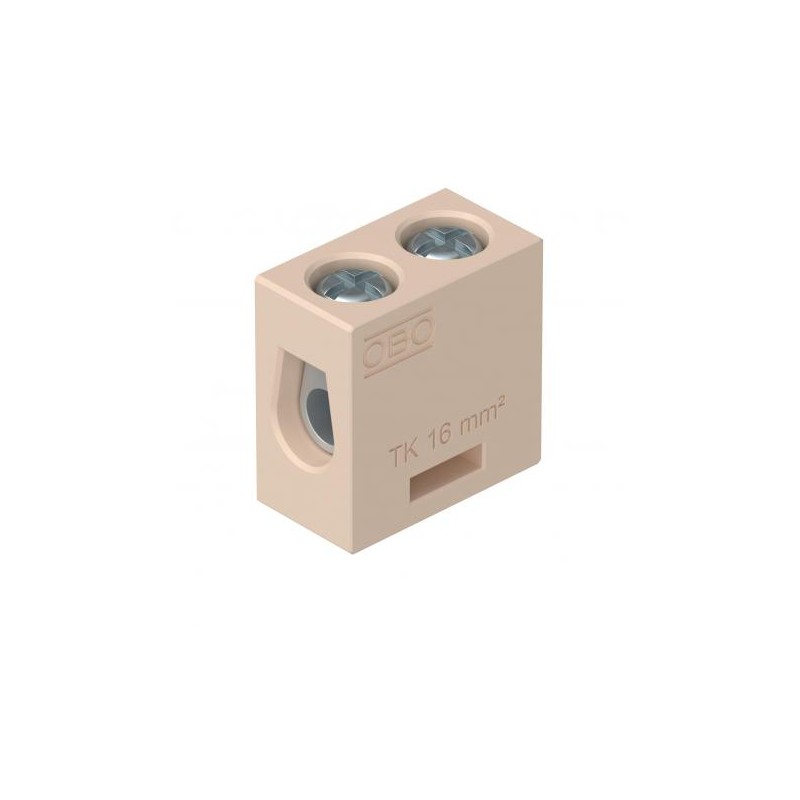

OBO BETTERMANN TK 16 7205706 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

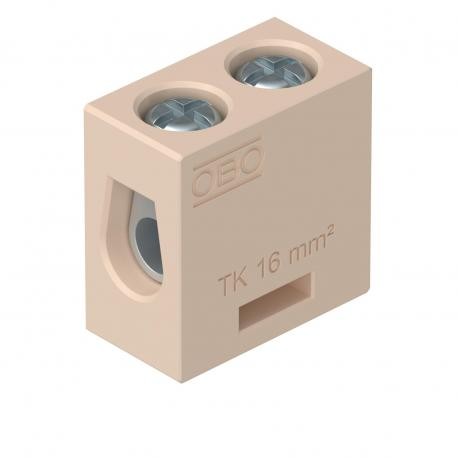

TK 16 7205706 OBO BETTERMANN BORNE CERAMIC TK16 FIREBOX T

Reference: TK 16

Code: 7205706

Manufacturer: OBO BETTERMANN

Description:

BORNE CERAMIC TK16 FIREBOX T
Ceramic terminal block TK 16, for FireBox T 16 mm²,
Ceramic terminal, single. High-temperature-resistant ceramic terminal for refitting of the FireBox T series. Tested according to DIN EN 60998-2-1:2004.

Categories:

  • Terminal blocks > Single- and multi-pole terminal strip
  • OBO BETTERMANN > BSS fire protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 50,22 €

Unit Price: 10,044 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Closing plate requiredno
CO2 Footprint (GWP) Cradle-to-Gate0,0039 kg CO2e / 1 Piece
ColourCream
Connectable conductor cross-section, multi-wire, max.16 mm²
Connectable conductor cross-section, multi-wire, min.6 mm²
Connectable conductor cross-section, single-wire, max.10 mm²
Connectable conductor cross-section, single-wire, min.6 mm²
Connection positionSide
Dimension16 mm²
Explosion-tested versionno
Height28 mm
Insulation materialCeramic
Length15 mm
MaterialSteatit
No. of terminals2
Nominal cross-section, max.16 mm²
Nominal cross-section, min.6 mm²
Nominal current76 A
Nominal voltage400 V
Number of screwless terminals per pole2
Permitted temperature range, max.250 °C
Pole number1
Transparentno
Version of electrical connection 1Screw connection
Version of electrical connection 2Screw connection
Width28 mm

ETIM for 7205706 Terminal blocks (EC001284)

Feature nameRated current In (EF008250)
Feature value76 A
Feature nameRated voltage (EF000228)
Feature value400 V
Feature nameType of electrical connection 1 (EF002526)
Feature valueScrew connection
Feature nameType of electrical connection 2 (EF002527)
Feature valueScrew connection
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameNumber of clamp positions per pole (EF002519)
Feature value2
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameMaterial insulation body (EF007543)
Feature valueCeramics
Feature nameWidth (EF000008)
Feature value28 mm
Feature nameHeight (EF000040)
Feature value28 mm
Feature nameDepth (EF000049)
Feature value15 mm
Feature nameClosing plate required (EF002525)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
7205706 OBO BETTERMANN BORNE CERAMIC TK16 FIREBOX T
45 Kbytes
PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN
18 Mbytes
PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN
12 Mbytes
