OBO BETTERMANNBSS fire protection systems - OBO BETTERMANN7205700 OBO BETTERMANN TERMINAL CERÁM. 04 DATA FIREBOX T

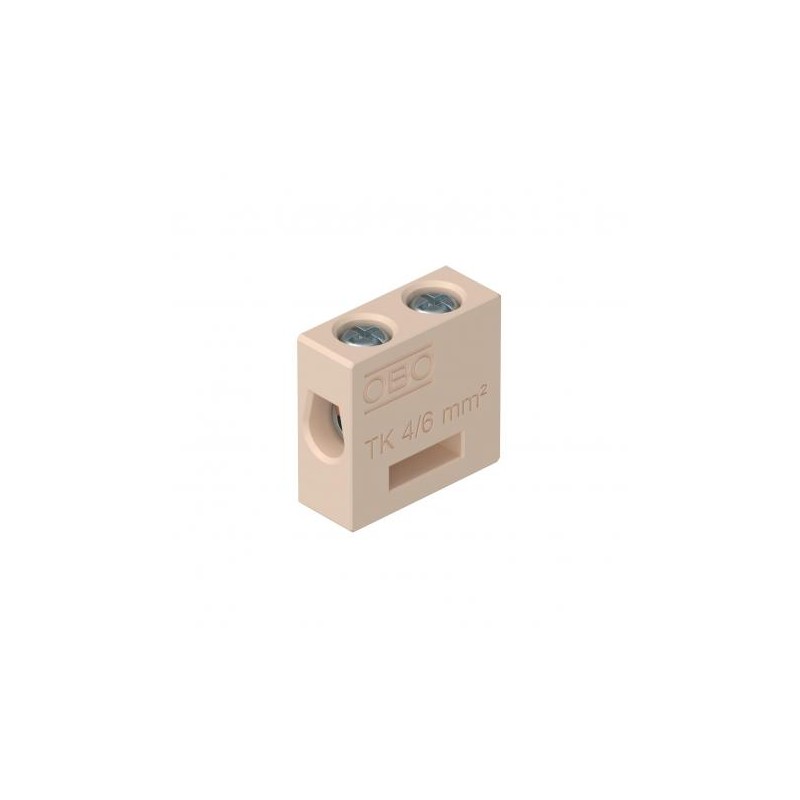

OBO BETTERMANN TK 04 7205700 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

7205700 OBO BETTERMANN TERMINAL CERÁM. 04 DATA FIREBOX T

Reference: TK 04

Code: 7205700

Manufacturer: OBO BETTERMANN

Description:

TERMINAL CERÁM. 04 DATA FIREBOX T
Ceramic terminal. High-temperature-resistant ceramic terminal for refitting of the FireBox T series. Tested according to DIN EN 60998-2-1:2004.

Categories:

  • Terminal blocks > Single- and multi-pole terminal strip
  • OBO BETTERMANN > BSS fire protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 19,88 €

Unit Price: 3,976 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Closing plate requiredno
CO2 Footprint (GWP) Cradle-to-Gate0,0029 kg CO2e / 1 Piece
ColourCream
Connectable conductor cross-section, single-wire, max.4 mm²
Connectable conductor cross-section, single-wire, min.0,5 mm²
Connection positionSide
Dimension4 mm²
Explosion-tested versionno
Height21,5 mm
Insulation materialCeramic
Length8,5 mm
MaterialSteatit
No. of terminals2
Nominal cross-section, max.4 mm²
Nominal cross-section, min.0,5 mm²
Nominal current32 A
Nominal voltage400 V
Number of screwless terminals per pole2
Permitted temperature range, max.250 °C
Pole number1
Transparentno
Version of electrical connection 1Screw connection
Version of electrical connection 2Screw connection
Width21,5 mm
