OBO BETTERMANNBSS fire protection systems - OBO BETTERMANN7205640 OBO BETTERMANN BOX FIREBOX T100ED 4-10 ADS

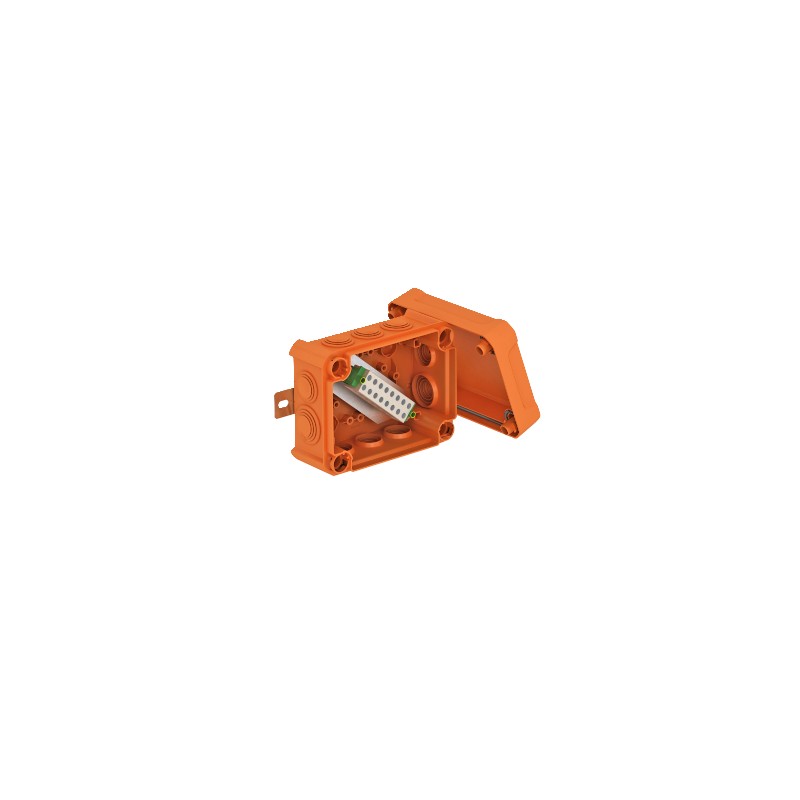

OBO BETTERMANN T100ED 4-10 ADS 7205640 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

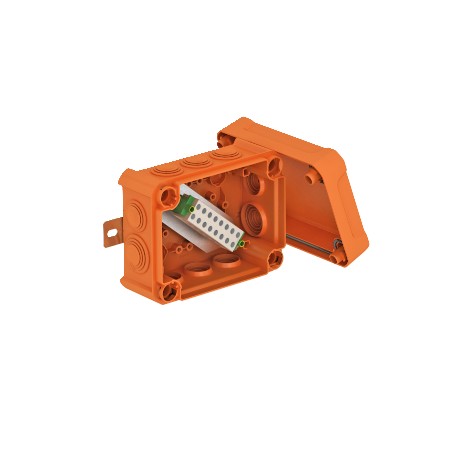

7205640 OBO BETTERMANN BOX FIREBOX T100ED 4-10 ADS

Reference: T100ED 4-10 ADS

Code: 7205640

Manufacturer: OBO BETTERMANN

Description:

BOX FIREBOX T100ED 4-10 ADS

Categories:

  • Connection devices > Box/housing for surface mounting on the wall/ceiling
  • OBO BETTERMANN > BSS fire protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Go to successor article:T 100 ED 4-10 AD7205583

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Halogen-free junction box with impact-proof cover and pre-mounted, soft plug-in seals, approved for electrical function maintenance according to DIN 4102 Part 12. Function maintenance classes E30 to E90.

Colour: Pastel orange.

Fully mounted connection unit made of high temperature-resistant special ceramic and labelled protective conductor terminals. Supplied with 2 MMS 6x50 fire protection screw ties for anchorless fastening on the external straps.
For data cables with wire Ø 0.8 mm Up to 6 rigid copper wires (0.5 mm2) possible on each terminal. High protection rating IP66, impact resistance class IK09.

Details on the cable types and manufacturers can be found in the general construction test certificate of the material testing institute MPA NRW, Erwitte.

DATASHEET - PDF

Title
Size
Type
7205640 OBO BETTERMANN BOX FIREBOX T100ED 4-10 ADS
56 Kbytes
PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN
18 Mbytes
PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN
12 Mbytes
