6342494 OBO BETTERMANN PROFILE "OR" US 3 150 V4A
US 3 150 VA4571
6342494
OBO BETTERMANN

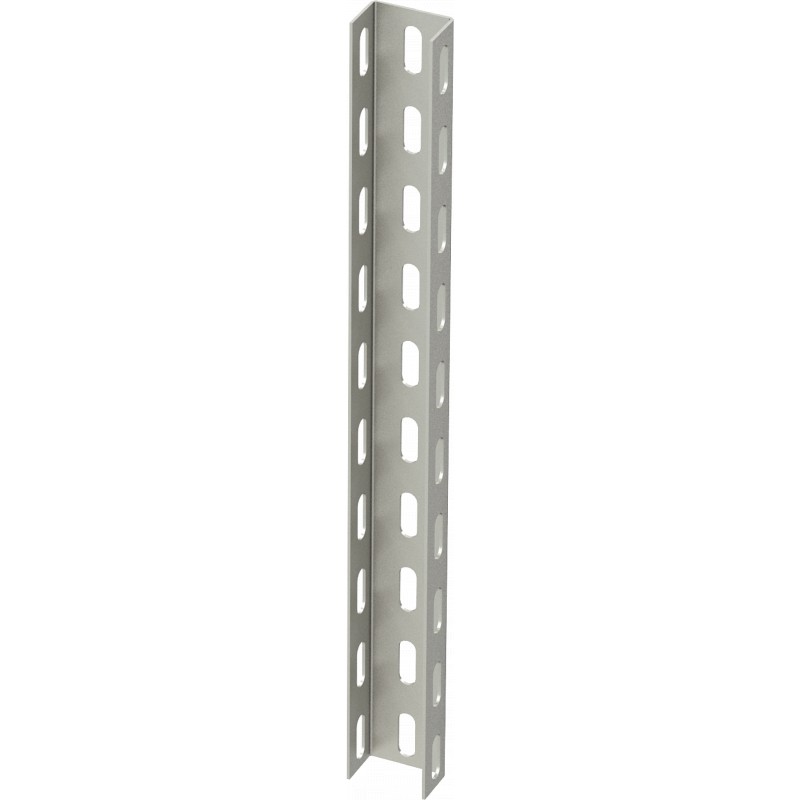

PROFILE "OR" US 3 150 V4A
US 3 support A4. U support in fixed lengths. Dimensions 30 x 50 mm.
Fasteners > Mounting rail/-profile
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 11,6311 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Dimension | 50x30x1500 |
| Dimension | 30 x 50 x 2,0 |
| Height | 30 mm |
| Length | 1500 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Material thickness | 2 mm |
| Profile shape | U profile |
| Static value A | 1,42 cm² |
|---|---|
| Static value ly | 1,52 cm⁴ |
| Static value lz | 5,72 cm⁴ |
| Static value Wy | 0,7 cm³ |
| Static value Wz | 2,29 cm³ |
| Surface | Bright, treated |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 50 mm |
| With toothing | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
| 6342494 OBO BETTERMANN PROFILE "OR" US 3 150 V4A | 166 Kbytes |
|
