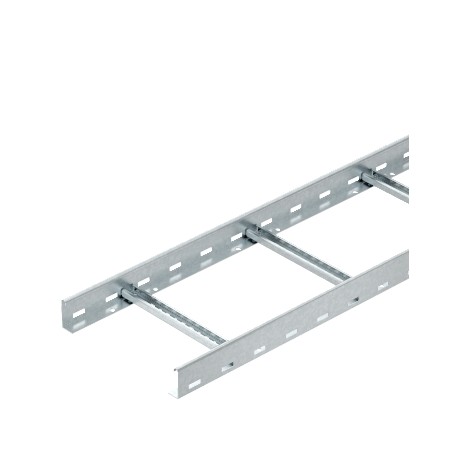

6209729 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x600 FS
LCIS 660 3 FT
6209729
OBO BETTERMANN
3 m.
TRAY ESC PERF. SOLDD 60x600 FS

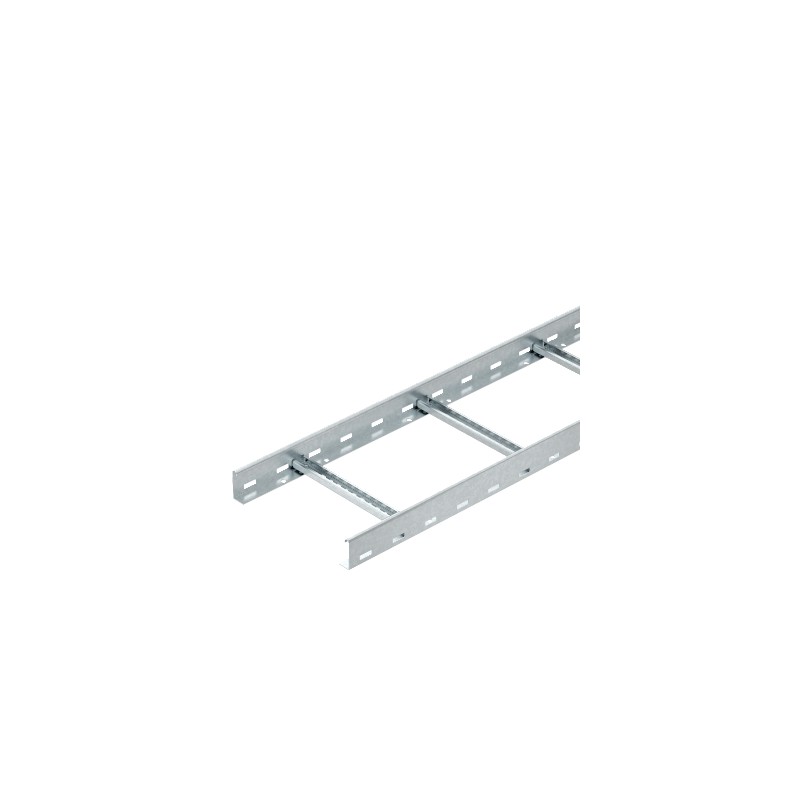

Cable ladder LCIS 60, 3 m C30 FT. Cable ladder with a 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using hold-down clamps, type LKS 40. The slot dimension of the rung is 16.5 mm and the appropriate clamp clip is type BS-H.... Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cable carrying systems > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 8,5706 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 60x600x3000 |
| Dimension B | 600 mm |
| Fastening of rung | Welded |
| Height | 60 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 1.5 m | 3,3 kN/m |
|---|---|
| Support spacing 2.0 m | 2 kN/m |
| Support spacing 2.5 m | 1,3 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Support spacing 3.5 m | 0,78 kN/m |
| Support spacing 4.0 m | 0,4 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,2 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 24000 mm² |
| Usable cross-section | 240 cm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 600 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
| 6209729 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x600 FS | 45 Kbytes |
|
