OBO BETTERMANNKTS cable support systems - OBO BETTERMANNLCIS 660 3 FS 6209618 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x600 FT

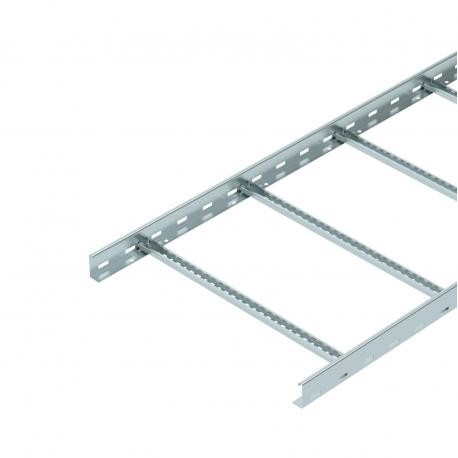

OBO BETTERMANN LCIS 660 3 FS 6209618 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

LCIS 660 3 FS 6209618 OBO BETTERMANN TRAY ESC PERF. SOLDD 60x600 FT

Reference: LCIS 660 3 FS

Code: 6209618

Manufacturer: OBO BETTERMANN

Description:

TRAY ESC PERF. SOLDD 60x600 FT

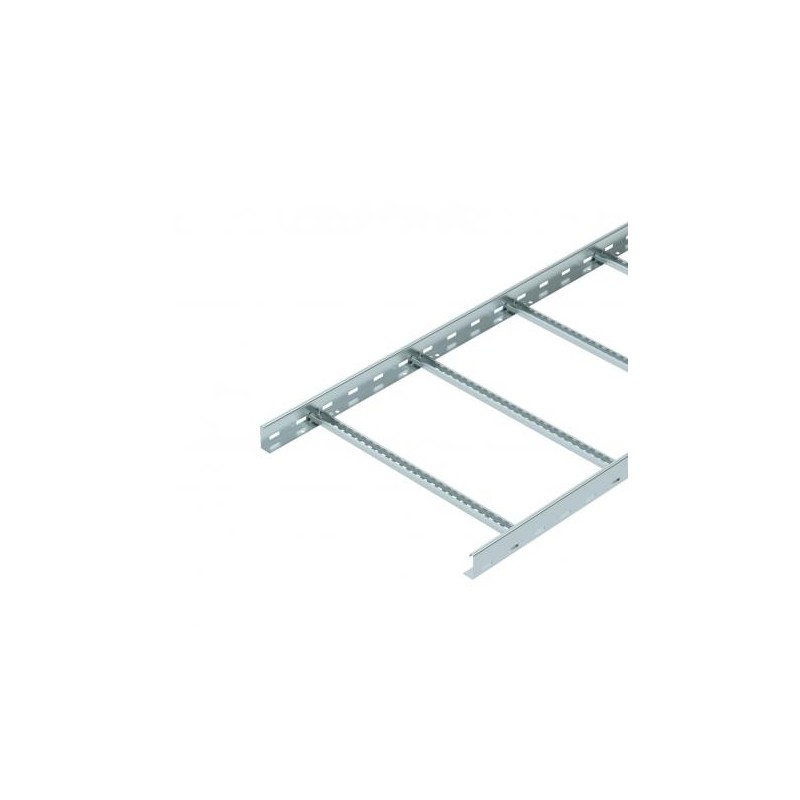

LCIS 660 3 FS ladder tray, Perforated step, welded 60x600x3000 Steel, St, galvanized in band, DIN EN 10346
LCIS 60 cable ladder, 3 m C30 FS. Cable ladder with a 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using hold-down clamps, type LKS 40. The slot dimension of the rung is 16.5 mm and the appropriate clamp clip is type BS-H.... Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Categories:

  • Cable carrying systems > Cable ladder/wide span cable ladder
  • OBO BETTERMANN > KTS cable support systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 108,30 €

Unit Price: 36,10 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate8,7106 kg CO2e / 1 Meter
Colourzinc
Dimension60x600x3000
Dimension B600 mm
Fastening of rungWelded
Height60 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness1,5 mm
Rung distance300 mm
Rung slot dimension17,00
Rustproof steel, pickledno
Side perforationyes
Side rail versionFlat profile
Support spacing 1.5 m3,3 kN/m
Support spacing 2.0 m2 kN/m
Support spacing 2.5 m1,3 kN/m
Support spacing 3.0 m1 kN/m
Support spacing 3.5 m0,78 kN/m
Support spacing 4.0 m0,4 kN/m
Support spacing 4.5 m0,3 kN/m
Support spacing 5.0 m0,2 kN/m
SurfaceStrip galvanized
Usable cross-section24000 mm²
Usable cross-section240 cm²
Version of the rungsProfile perforated
Wide-span versionno
Width600 mm
