6207310 OBO BETTERMANN TRAY ESC BLIND SUN 110x500 FT
SLCS 1150 3 FT
6207310
OBO BETTERMANN
3 m.
TRAY ESC BLIND SUN 110x500 FT

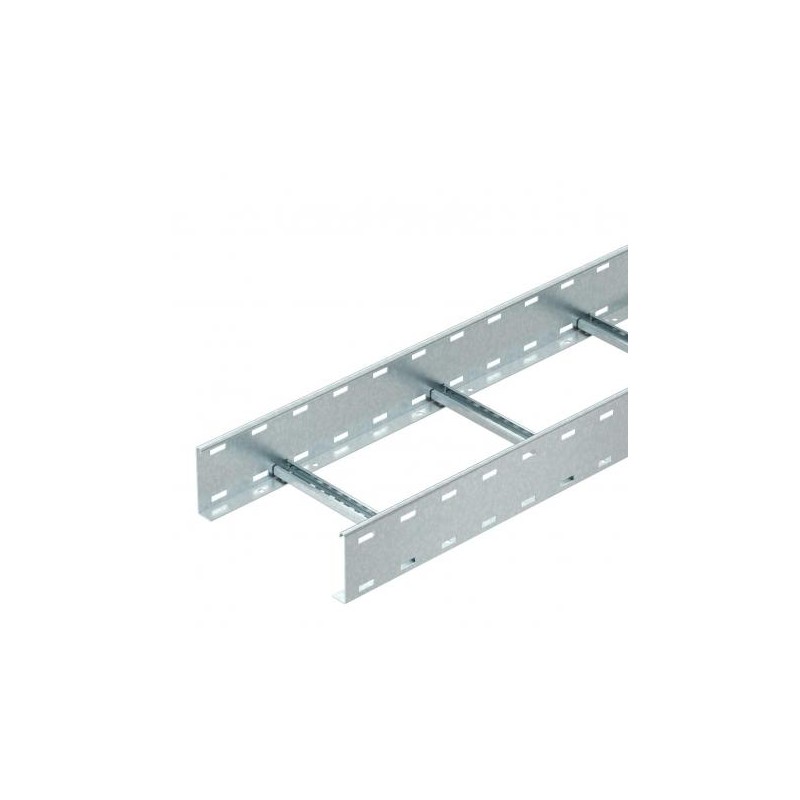

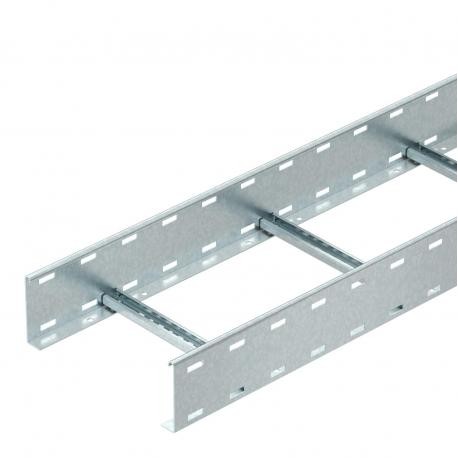

Cable ladder SLCS 110, 3 m C30 FT. Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056. Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cable carrying systems > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 13,3592 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 110x500x3000 |
| Dimension B | 500 mm |
| Fastening of rung | Welded |
| Height | 110 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 2 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 2.0 m | 4 kN/m |
|---|---|
| Support spacing 2.5 m | 3 kN/m |
| Support spacing 3.0 m | 2,3 kN/m |
| Support spacing 3.5 m | 1,6 kN/m |
| Support spacing 4.0 m | 1 kN/m |
| Support spacing 4.5 m | 0,83 kN/m |
| Support spacing 5.0 m | 0,7 kN/m |
| Support spacing 6.0 m | 0,25 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 450 cm² |
| Usable cross-section | 45000 mm² |
| Version of the rungs | Profile unperforated |
| Wide-span version | no |
| Width | 500 mm |
