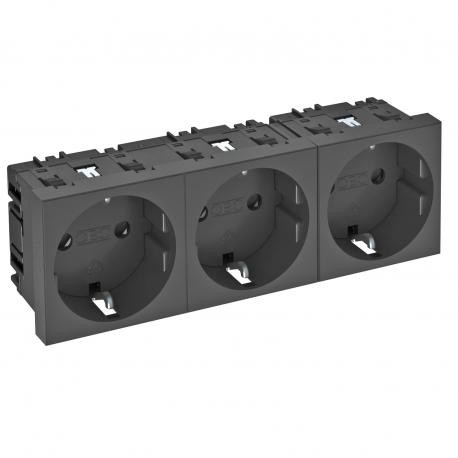

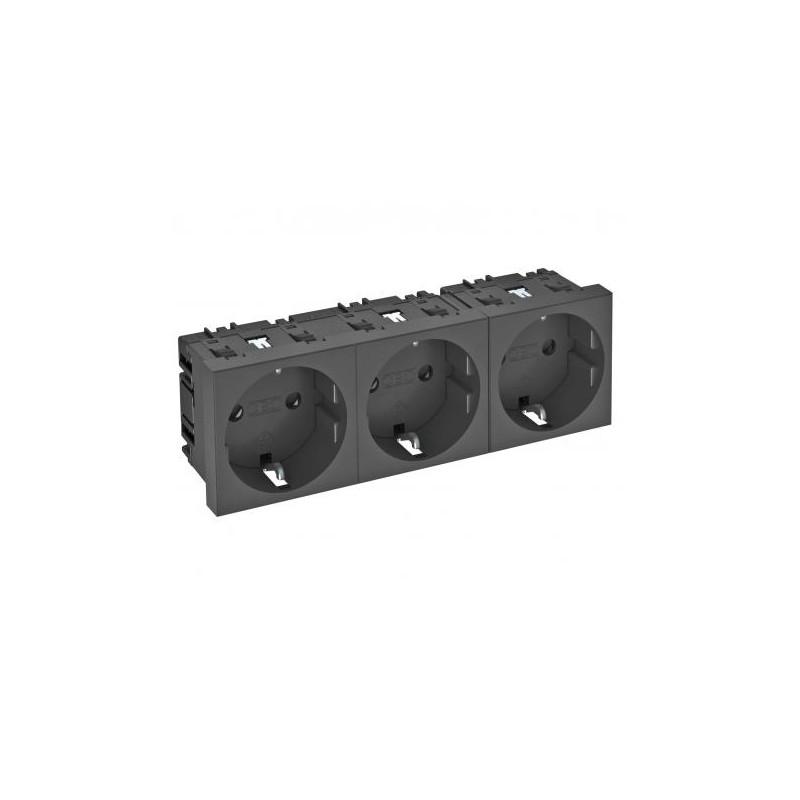

STD-D0 SWGR3 6120050 OBO BETTERMANN POWER OUTLET STD-D0 NGGR3
STD-D0 SWGR3
6120050
OBO BETTERMANN
POWER OUTLET STD-D0 NGGR3
0° electrical socket, triple STD-D0 SWGR3, ground connection 250V, 10/16A Polycarbonate, PC,
0° power socket, with earth connection, triple. Power socket with triple 0° grounding plug, with increased protection against accidental contact, with plug terminals, 2 poles, 16 A, 250 V~, with connection terminals according to IEC 60884-1. For installation in Rapid 45 channels, mechanism channels, installation columns, underfloor systems and Deskbox sockets.
Domestic switching devices > Socket outlet
EGS device systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| With signal lamp (EF000198) | No |
| Number of modules (module system) (EF009573) | 0 |
| Number of socket outlets switchable (EF008814) | 0 |
| Imprint/indication (EF003823) | None |
| Connection type (EF000124) | Screwless terminal |
| With hinged lid (EF000117) | No |
| With enhanced contact protection (EF000389) | Yes |
| Label space/information surface (EF001035) | No |
| Colour (EF000007) | Black |
| RAL-number (similar) (EF003882) | 7021 |
| Transparent (EF006243) | No |
| Lockable (EF000113) | No |
| Eject-mechanism (EF001051) | No |
| Insulated mounting (EF001588) | No |
| With function lighting (EF008861) | No |
| With orientation lighting (EF008862) | No |
| Over voltage protection (EF001332) | No |
| Fault current protection (EF001333) | No |
| With miniature fuse (EF006571) | No |
| Special power supply (EF001334) | EV006426 |
| Mounting method (EF000003) | Trunking mounted |
| Type of fastening (EF002442) | Snap mounting (engagement) |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | Yes |
| With on/off switch (EF000488) | No |
| Rotated central insert (EF001331) | No |
| Nominal current (EF000001) | 16 A |
| Nominal voltage (EF000002) | 250 V |
| Suitable for degree of protection (IP) (EF006755) | Other |
| Device width (EF008808) | 135 mm |
| Device height (EF008809) | 45 mm |
| Device depth (EF008810) | 42 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
| 6120050 OBO BETTERMANN POWER OUTLET STD-D0 NGGR3 | 49 Kbytes |
|
