OBO BETTERMANNEGS device systems - OBO BETTERMANNSTD-D0 MZGN1 6120012 OBO BETTERMANN POWER OUTLET STD-D0 VERDE1

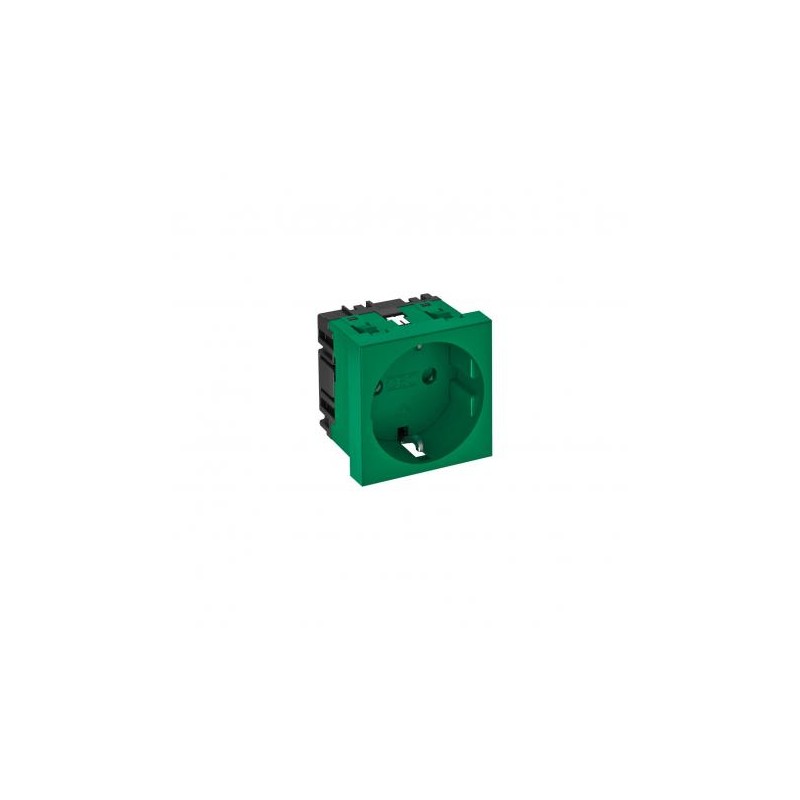

OBO BETTERMANN STD-D0 MZGN1 6120012 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

STD-D0 MZGN1 6120012 OBO BETTERMANN POWER OUTLET STD-D0 VERDE1

Reference: STD-D0 MZGN1

Code: 6120012

Manufacturer: OBO BETTERMANN

Description:

POWER OUTLET STD-D0 VERDE1
0° electrical socket, simple STD-D0 MZGN1, ground connection 250V, 10/16A Polycarbonate, PC,
0° power socket, with earth connection, simple. Power socket with simple 0° earthing plug, with increased protection against accidental contact, with plug terminals, 2 poles, 16 A, 250 V~, with connection terminals according to IEC 60884-1. For installation in Rapid 45 channels, mechanism channels, installation columns, underfloor systems and Deskbox sockets.

Categories:

  • Domestic switching devices > Socket outlet
  • OBO BETTERMANN > EGS device systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Protective contact socket, single 0°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals to IEC 60884-1.

ETIM for 6120012 Domestic wiring accessories and controls (EC000125)

Feature nameModel (EF000010)
Feature valueSocket outlet CEE 7/3 (type F)
Feature nameWith signal lamp (EF000198)
Feature valueNo
Feature nameNumber of modules (module system) (EF009573)
Feature value0
Feature nameNumber of socket outlets switchable (EF008814)
Feature value0
Feature nameImprint/indication (EF003823)
Feature valueNone
Feature nameConnection type (EF000124)
Feature valueScrewless terminal
Feature nameWith hinged lid (EF000117)
Feature valueNo
Feature nameWith enhanced contact protection (EF000389)
Feature valueYes
Feature nameLabel space/information surface (EF001035)
Feature valueNo
Feature nameColour (EF000007)
Feature valueGreen
Feature nameRAL-number (similar) (EF003882)
Feature value6029
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameLockable (EF000113)
Feature valueNo
Feature nameEject-mechanism (EF001051)
Feature valueNo
Feature nameInsulated mounting (EF001588)
Feature valueNo
Feature nameWith function lighting (EF008861)
Feature valueNo
Feature nameWith orientation lighting (EF008862)
Feature valueNo
Feature nameOver voltage protection (EF001332)
Feature valueNo
Feature nameFault current protection (EF001333)
Feature valueNo
Feature nameWith miniature fuse (EF006571)
Feature valueNo
Feature nameSpecial power supply (EF001334)
Feature valueEV006426
Feature nameMounting method (EF000003)
Feature valueTrunking mounted
Feature nameType of fastening (EF002442)
Feature valueSnap mounting (engagement)
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameMaterial quality (EF001257)
Feature valueOther
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameWith on/off switch (EF000488)
Feature valueNo
Feature nameRotated central insert (EF001331)
Feature valueNo
Feature nameNominal current (EF000001)
Feature value16 A
Feature nameNominal voltage (EF000002)
Feature value250 V
Feature nameSuitable for degree of protection (IP) (EF006755)
Feature valueOther
Feature nameDevice width (EF008808)
Feature value45 mm
Feature nameDevice height (EF008809)
Feature value45 mm
Feature nameDevice depth (EF008810)
Feature value42 mm
