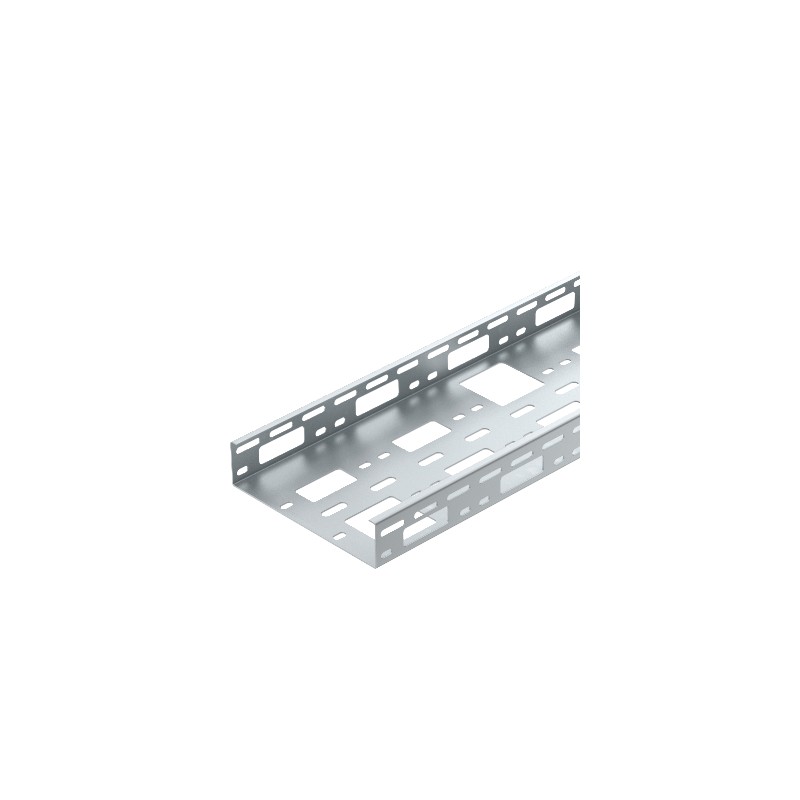

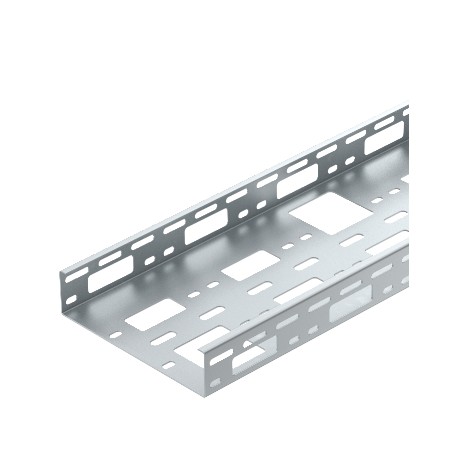

6075350 OBO BETTERMANN SMALL CHANNEL AZK 200 FT
AZK 200 FT
6075350
OBO BETTERMANN
3 m.
SMALL CHANNEL AZK 200 FT
AZ channel system 200 FT. AZ channel with a side height of 50 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,7883 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 50x200x3000 |
| Dimension | 50x200x1,5 |
| Height | 50 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
|---|---|
| Side perforation | yes |
| Support spacing 1.0 m | 2,5 kN/m |
| Support spacing 1.5 m | 1,9 kN/m |
| Support spacing 2.0 m | 1,3 kN/m |
| Support spacing 2.5 m | 0,8 kN/m |
| Support spacing 3.0 m | 0,3 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 10000 mm² |
| Usable cross-section | 100 cm² |
| Wide-span version | no |
| Width | 200 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
| 6075350 OBO BETTERMANN SMALL CHANNEL AZK 200 FT | 54 Kbytes |
|
