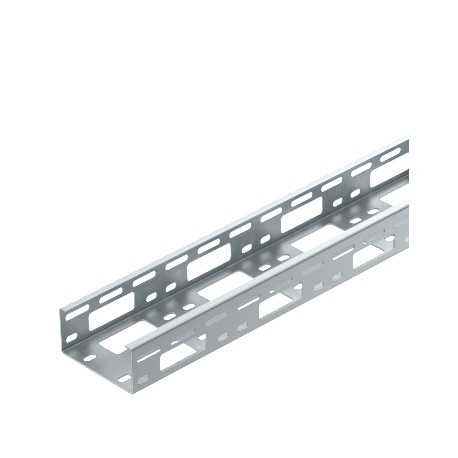

6075024 OBO BETTERMANN LANE FOR LUMINAIRES LTS 100 FS
LTS 100 FS
6075024
OBO BETTERMANN
6
LANE FOR LUMINAIRES LTS 100 FS

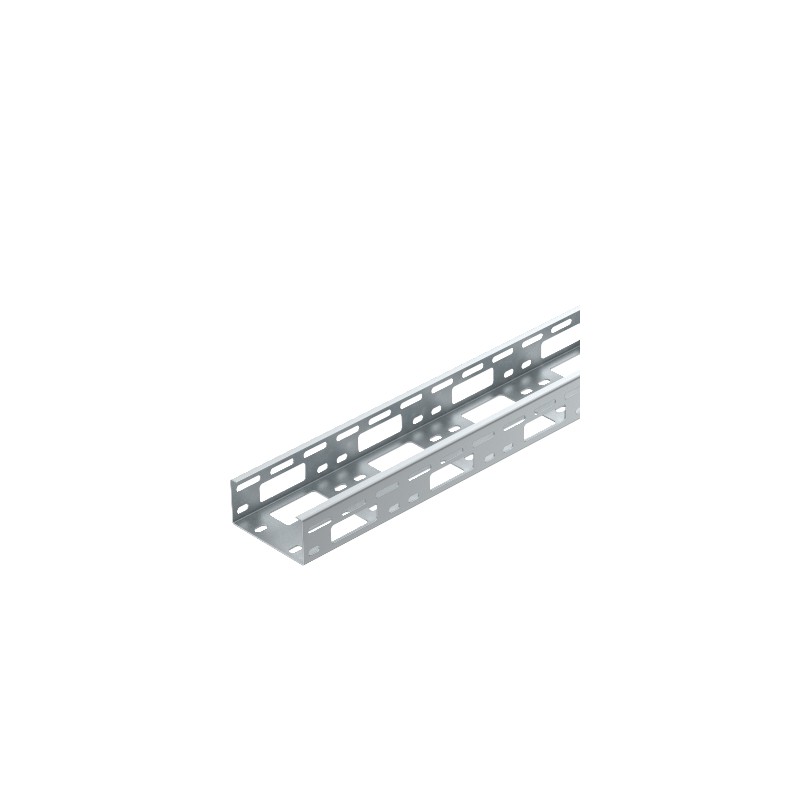

Luminaire support channel 100 FS. Perforated luminaire support tray for cable routing and luminaire mounting.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cable carrying systems > Luminaire carrier tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 5,5598 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 50x100x6000 |
| Height | 50 mm |
| Length | 6000 mm |
| Material | Steel |
| Plate thickness | 1,5 mm |
| Support spacing 1.0 m | 1,7 kN/m |
|---|---|
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,6 kN/m |
| Support spacing 3.0 m | 0,4 kN/m |
| Surface | Strip galvanized |
| Usable cross-section | 46 cm² |
| Width | 100 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
| 6075024 OBO BETTERMANN LANE FOR LUMINAIRES LTS 100 FS | 51 Kbytes |
|
