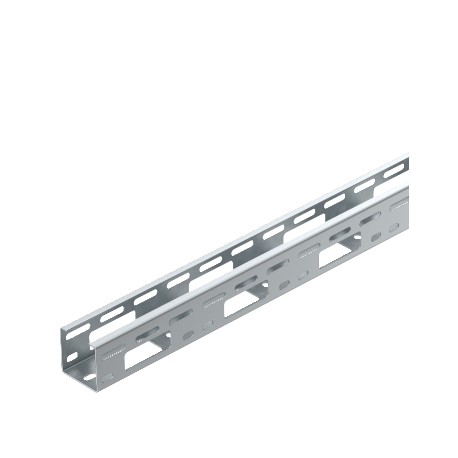

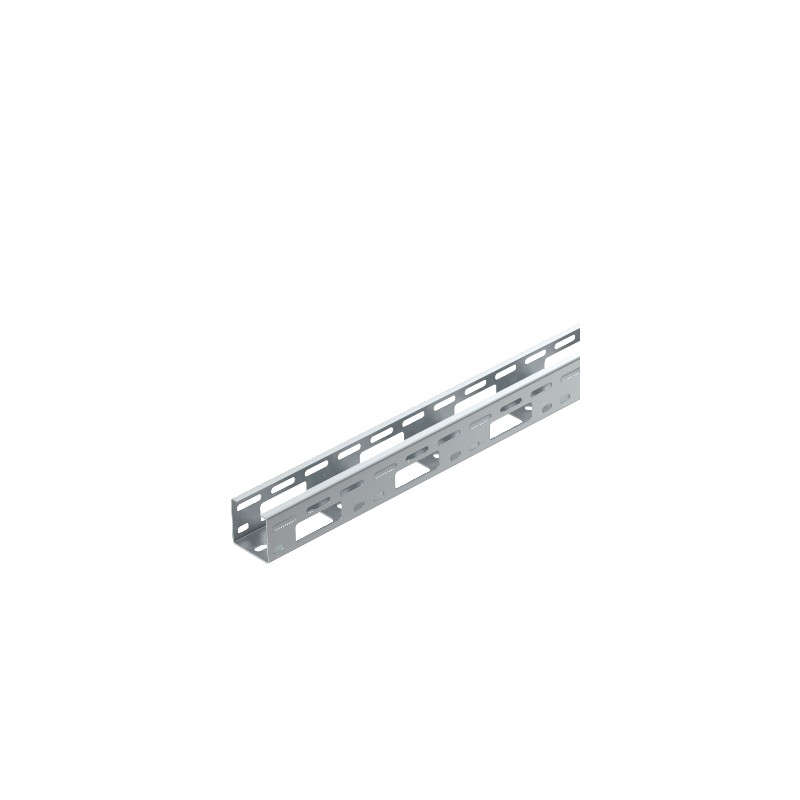

6075005 OBO BETTERMANN LANE FOR LUMINAIRES LTS 50 FT
LTS 50 FT
6075005
OBO BETTERMANN
6 m.
LANE FOR LUMINAIRES LTS 50 FT
Luminaire support channel 50 FT. Perforated luminaire support channel for cable routing and luminaire mounting. Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cable carrying systems > Luminaire carrier tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 4,2765 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 50x50x6000 |
| Dimension B | 50 mm |
| Height | 50 mm |
| Length | 6000 mm |
| Material | Steel |
| Plate thickness | 1,5 mm |
| Support spacing 1.0 m | 2,5 kN/m |
|---|---|
| Support spacing 1.5 m | 2 kN/m |
| Support spacing 2.0 m | 1,2 kN/m |
| Support spacing 2.5 m | 0,85 kN/m |
| Support spacing 3.0 m | 0,5 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 22 cm² |
| Width | 50 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
| 6075005 OBO BETTERMANN LANE FOR LUMINAIRES LTS 50 FT | 47 Kbytes |
|
