6062006 OBO BETTERMANN TRAY PASSABLE BKRS 1040 FS
BKRS 1040 FS
6062006
OBO BETTERMANN
3 m.
TRAY PASSABLE BKRS 1040 FS

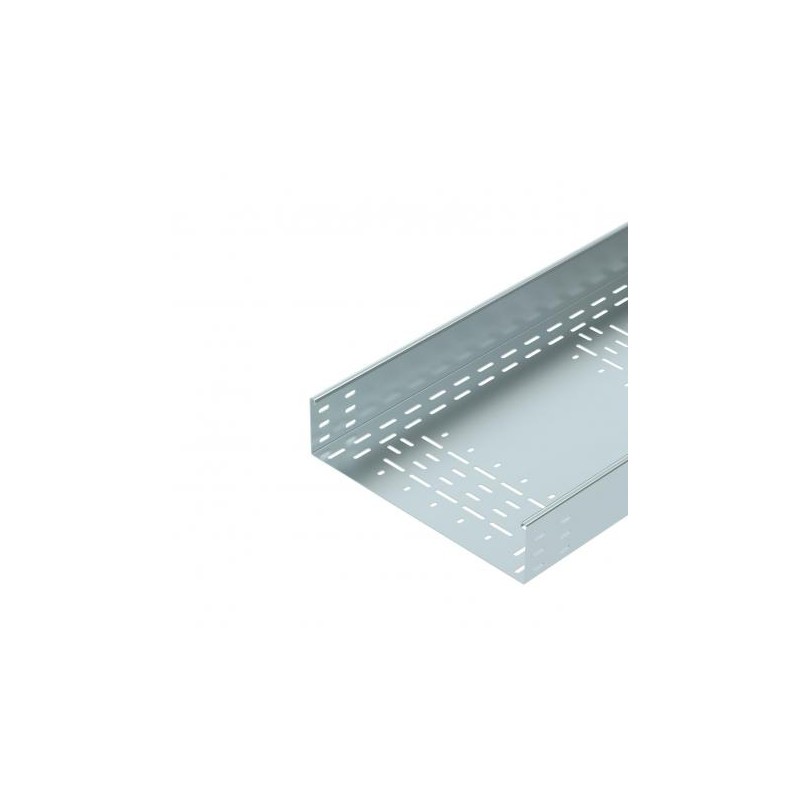

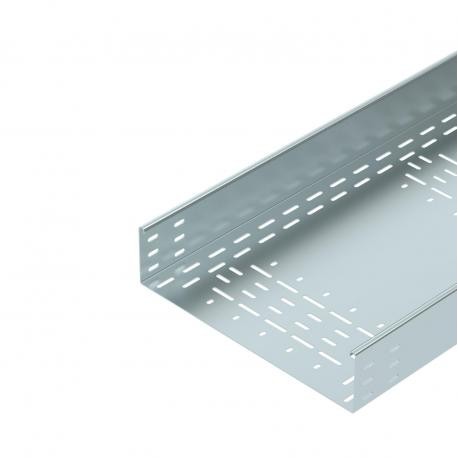

Cable tray BKRS 100 FS. Heavy-duty, walkable cable tray system BKRS with base perforation, in 100 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 21,5733 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 100x400x3000 |
| Dimension B | 400 mm |
| Dimension H | 100 mm |
| Dimension L | 3000 mm |
| Height | 4 in |
| Height | 100 mm |
| Length | 10 ft |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 2 mm |
| Plate thickness | 0,08 in |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 345 cm² |
| Usable cross-section | 34452 mm² |
| Wide-span version | no |
| Width | 400 mm |
| Width | 16 in |
| With cover | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
| 6062006 OBO BETTERMANN TRAY PASSABLE BKRS 1040 FS | 48 Kbytes |
|
