OBO BETTERMANNKTS cable support systems - OBO BETTERMANN6062000 OBO BETTERMANN TRAY PASSABLE BKRS 1010 FS

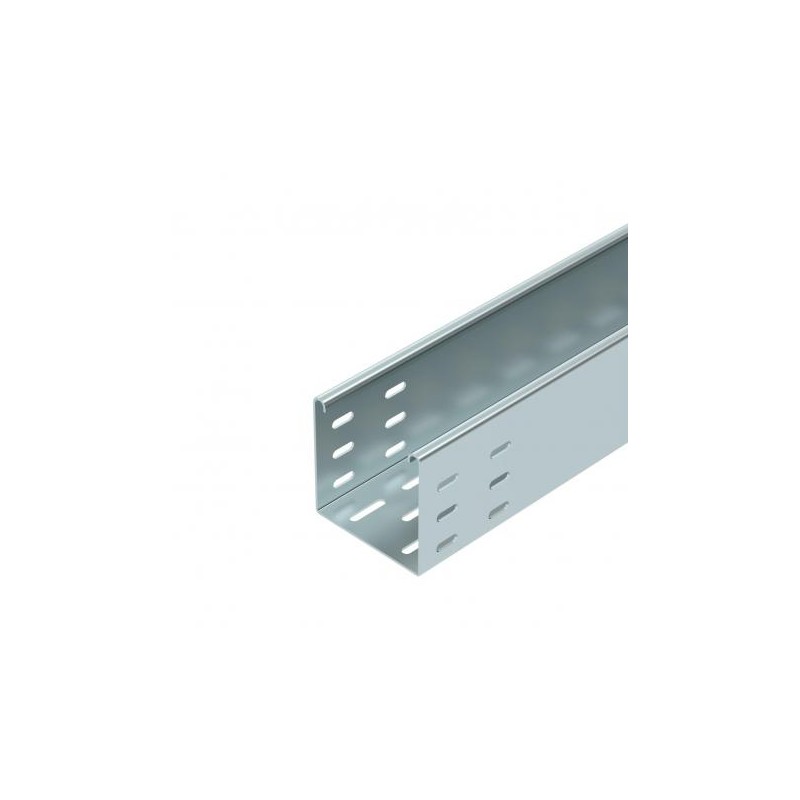

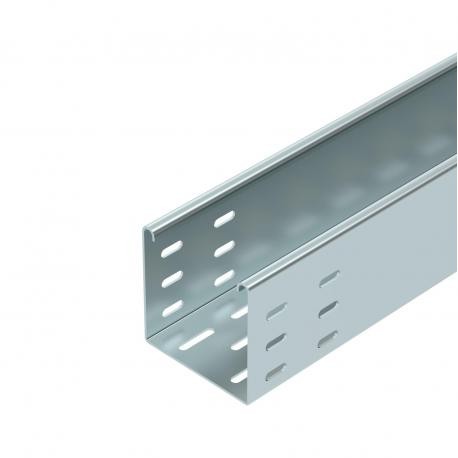

OBO BETTERMANN BKRS 1010 FS 6062000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

6062000 OBO BETTERMANN TRAY PASSABLE BKRS 1010 FS

Reference: BKRS 1010 FS

Code: 6062000

Manufacturer: OBO BETTERMANN

Description:

TRAY PASSABLE BKRS 1010 FS
Cable tray BKRS 100 FS. Heavy-duty, walkable cable tray system BKRS with base perforation, in 100 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Categories:

  • Cable carrying systems > Cable tray/wide span cable tray
  • OBO BETTERMANN > KTS cable support systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 99,39 €

Unit Price: 33,13 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate11,0206 kg CO2e / 1 Meter
Colourzinc
Connector versionWithout connectors
Dimension100x100x3000
Dimension B100 mm
Dimension H100 mm
Dimension L3000 mm
Height100 mm
Height4 in
Length3000 mm
Length10 ft
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
Plate thickness2 mm
Plate thickness0,08 in
Rustproof steel, pickledno
Side perforationno
SurfaceStrip galvanized
Type of connector, cable support systemScrewed
Usable cross-section8352 mm²
Usable cross-section84 cm²
Wide-span versionno
Width4 in
Width100 mm
With coverno

DATASHEET - PDF

Title
Size
Type
6062000 OBO BETTERMANN TRAY PASSABLE BKRS 1010 FS
47 Kbytes
PDF CATALOGUE KABELTRAGSYSTEME OBO EN
41 Mbytes
