OBO BETTERMANNKTS cable support systems - OBO BETTERMANNBKRS 1110 FS 6061981 OBO BETTERMANN TRAY PASSABLE BKRS 1110 FS

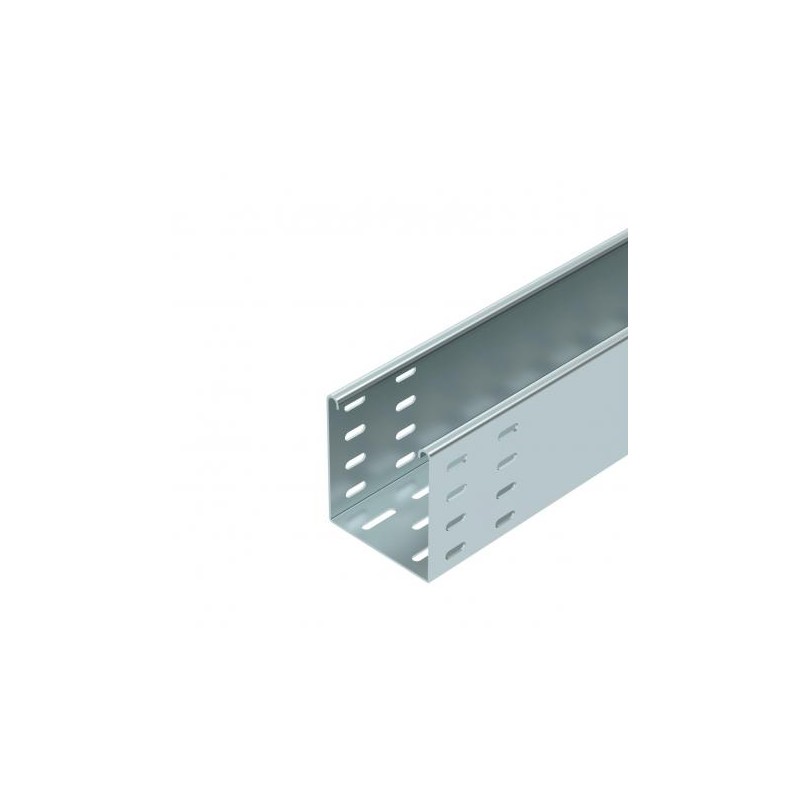

OBO BETTERMANN BKRS 1110 FS 6061981 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

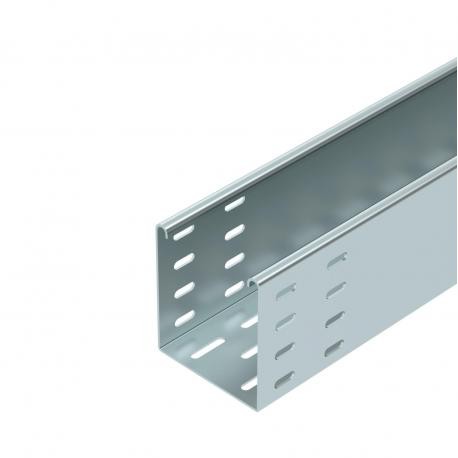

BKRS 1110 FS 6061981 OBO BETTERMANN TRAY PASSABLE BKRS 1110 FS

Reference: BKRS 1110 FS

Code: 6061981

Manufacturer: OBO BETTERMANN

Description:

TRAY PASSABLE BKRS 1110 FS
BKRS BKRS 1110 FS cable tray, walkable 110x100x3000 Steel, St, strip galvanized, DIN EN 10346
BKRS 110 FS walkable cable tray. Heavy and walkable BKRS cable tray system with 110 mm wing through hole. Magnetic insulation without cover 20 dB, with cover 50 dB.

Categories:

  • Cable carrying systems > Cable tray/wide span cable tray
  • OBO BETTERMANN > KTS cable support systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 103,85 €

Unit Price: 34,617 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Heavy-duty, walk-on cable tray system BKRS with base perforation, in 110 mm side height.

ETIM for 6061981 Cable tray, ladder and wire basket systems (EC000047)

Feature nameHeight (EF000040)
Feature value110 mm
Feature nameWidth (EF000008)
Feature value100 mm
Feature nameMaterial thickness (EF000386)
Feature value2 mm
Feature nameLength (EF001438)
Feature value3000 mm
Feature nameUseful cross section (EF005140)
Feature value9600 mm²
Feature nameWith cover (EF007965)
Feature valueNo
Feature nameSide perforation (EF001122)
Feature valueNo
Feature nameBottom perforation (EF004545)
Feature valueYes
Feature nameNATO-mounting holes (EF006059)
Feature valueNo
Feature nameModel (EF000010)
Feature valueCoupler not included
Feature nameType of connector (EF000141)
Feature valueScrewed
Feature nameSuitable for circuit integrity (EF007806)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface protection (EF000139)
Feature valuePre-galvanised
Feature nameWeight (EF000167)
Feature value5.18 kg/m
Feature nameLoad test type according to IEC 61537 (EF015362)
Feature valueType II
Feature namePossible support spacing (EF017261)
Feature value1.5 m
Feature nameSafe working load according to IEC 61537 with support spacing 1.5 m (EF017264)
Feature value5070
Feature nameSafe working load according to IEC 61537 with support spacing 2.0 m (EF017265)
Feature value4750
Feature nameSafe working load according to IEC 61537 with support spacing 2.5 m (EF017266)
Feature value2730
Feature nameSafe working load according to IEC 61537 with support spacing 3.0 m (EF017267)
Feature value2000

DATASHEET - PDF

Title
Size
Type
6061981 OBO BETTERMANN TRAY PASSABLE BKRS 1110 FS
47 Kbytes
PDF CATALOGUE KABELTRAGSYSTEME OBO EN
41 Mbytes
