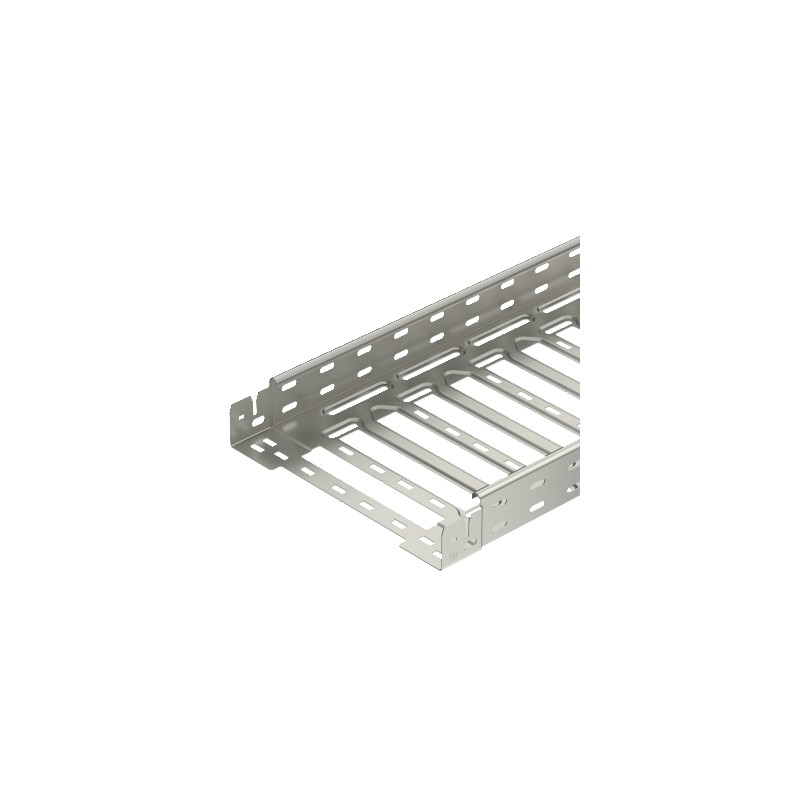

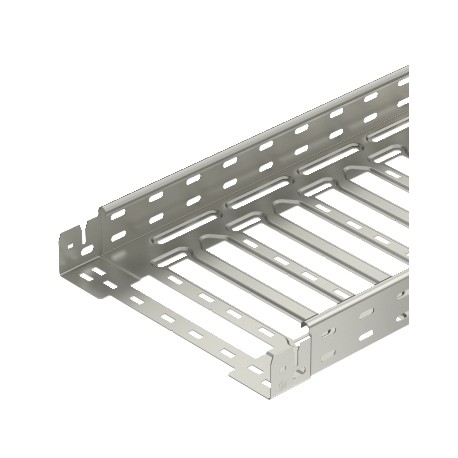

6059519 OBO BETTERMANN TRAY SKSMAGIC 660 VA4571
Reference: SKSM 660 VA4571
Code: 6059519
Manufacturer: OBO BETTERMANN
Description:
TRAY SKSMAGIC 660 VA4571
Cable tray SKS-Magic® 60 A4. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.
Categories:
- Cable carrying systems > Cable tray/wide span cable tray
- OBO BETTERMANN > KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
| CO2 Footprint (GWP) Cradle-to-Gate | 42,7061 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 60x600x3050 |
| Dimension B | 600 mm |
| Dimension L | 480 mm |
| Dimension x | 396 mm |
| Dimension y | 562 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 1,9 kN/m |
| Support spacing 2.0 m | 1,55 kN/m |
| Support spacing 2.5 m | 1,18 kN/m |
| Support spacing 3.0 m | 0,8 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 358 cm² |
| Usable cross-section | 35800 mm² |
| Wide-span version | no |
| Width | 600 mm |
| With cover | no |
