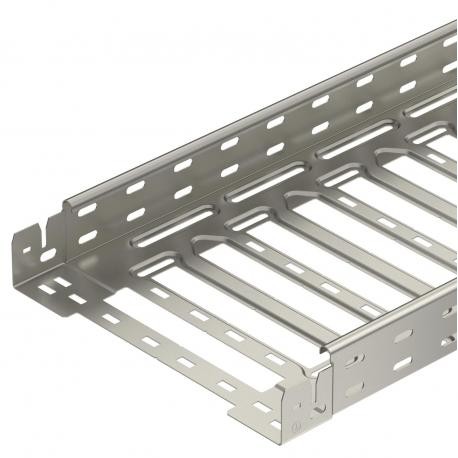

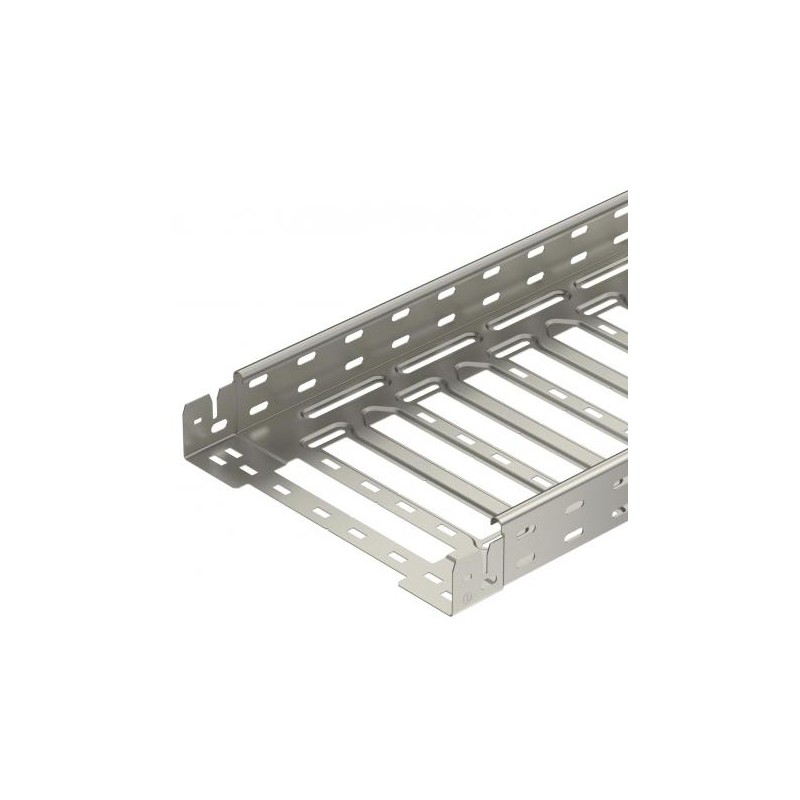

SKSM 650 A2 6059500 OBO BETTERMANN TRAY SKSMAGIC 650 VA4301
SKSM 650 A2
6059500
OBO BETTERMANN
3 m.
TRAY SKSMAGIC 650 VA4301
SKSM SKSM 650 A2 cable tray, perforated, plug-in 60x500x3050 Stainless steel 1.4301, A2, 1.4301, Polished, with post-treatment
Cable tray SKS-Magic® 60 A2. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 36,977 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 60x500x3050 |
| Dimension B | 500 mm |
| Dimension L | 380 mm |
| Dimension x | 396 mm |
| Dimension y | 462 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 1,9 kN/m |
| Support spacing 2.0 m | 1,55 kN/m |
| Support spacing 2.5 m | 1,18 kN/m |
| Support spacing 3.0 m | 0,8 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 298 cm² |
| Usable cross-section | 29800 mm² |
| Wide-span version | no |
| Width | 500 mm |
| With cover | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
| 6059500 OBO BETTERMANN TRAY SKSMAGIC 650 VA4301 | 60 Kbytes |
|
