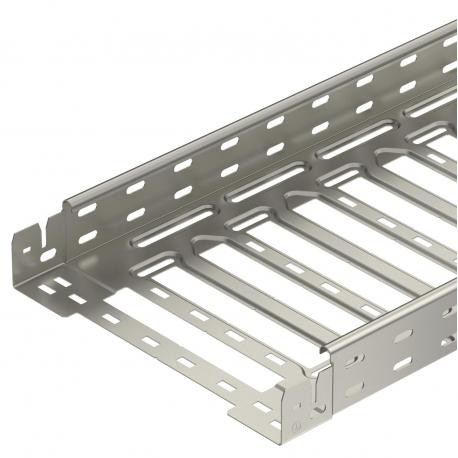

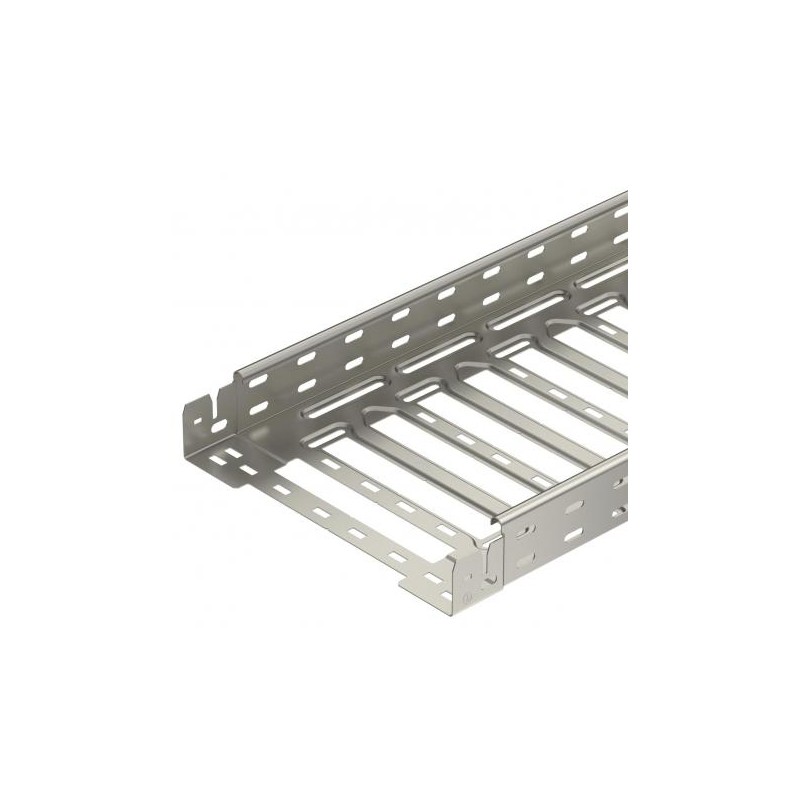

OBO BETTERMANN SKSM 630 A2 6059496 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

6059496 OBO BETTERMANN TRAY SKSMAGIC 630 VA4301

Reference: SKSM 630 A2

Code: 6059496

Manufacturer: OBO BETTERMANN

Description:

TRAY SKSMAGIC 630 VA4301
Cable tray SKS-Magic® 60 A2. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Categories:

  • Cable carrying systems > Cable tray/wide span cable tray
  • OBO BETTERMANN > KTS cable support systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 402,92 €

Unit Price: 134,305 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate25,5493 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension60x300x3050
Dimension B300 mm
Dimension L180 mm
Dimension x196 mm
Dimension y262 mm
Height60 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialStainless steel 1.4301
Mounting perforation in baseyes
NATO hole patternno
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationyes
Sprinkler system useyes
Support spacing 1.5 m2,7 kN/m
Support spacing 2.0 m2,1 kN/m
Support spacing 2.5 m1,47 kN/m
Support spacing 3.0 m0,8 kN/m
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section178 cm²
Usable cross-section17800 mm²
Wide-span versionno
Width300 mm
With coverno
