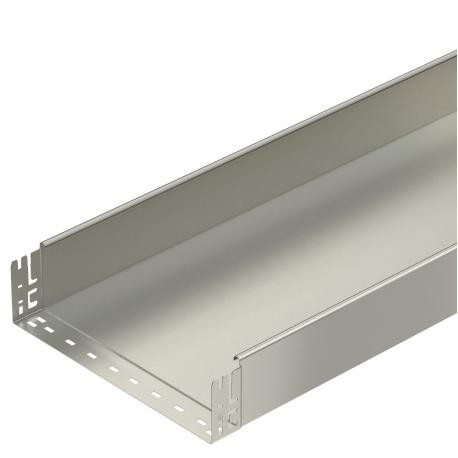

6059424 OBO BETTERMANN TRAY MKSMAGIC BLIND 140 VA4301
MKSMU 140 A2
6059424
OBO BETTERMANN
3 m.
TRAY MKSMAGIC BLIND 140 VA4301

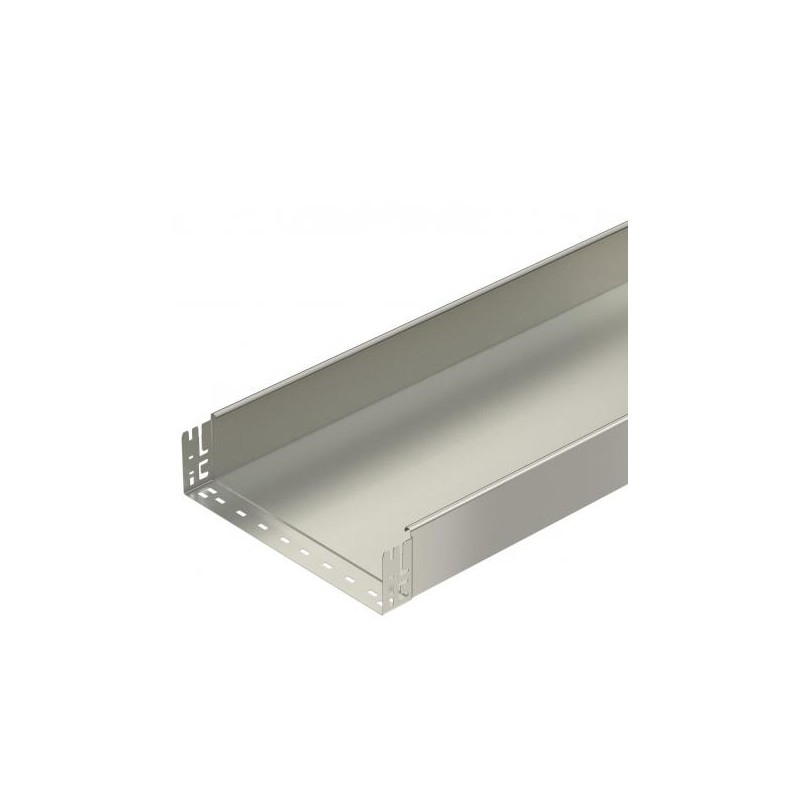

Cable tray MKS-Magic® 110, unperforated A2. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 28,8355 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 110x400x3050 |
| Dimension B | 400 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
|---|---|
| Support spacing 1.5 m | 1,85 kN/m |
| Support spacing 2.0 m | 1,3 kN/m |
| Support spacing 2.5 m | 0,75 kN/m |
| Support spacing 3.0 m | 0,6 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 43800 mm² |
| Usable cross-section | 438 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 400 mm |
| With cover | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
| 6059424 OBO BETTERMANN TRAY MKSMAGIC BLIND 140 VA4301 | 50 Kbytes |
|
