OBO BETTERMANNKTS cable support systems - OBO BETTERMANN6059416 OBO BETTERMANN TRAY MKSMAGIC BLIND 110 VA4301

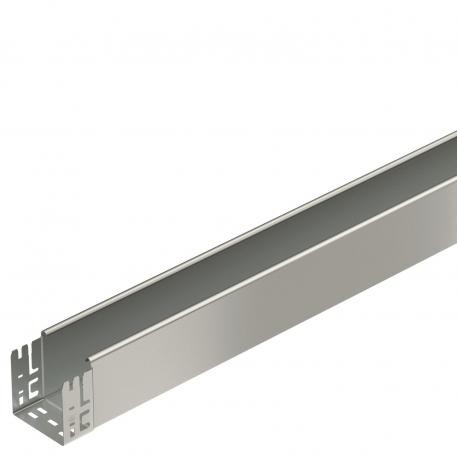

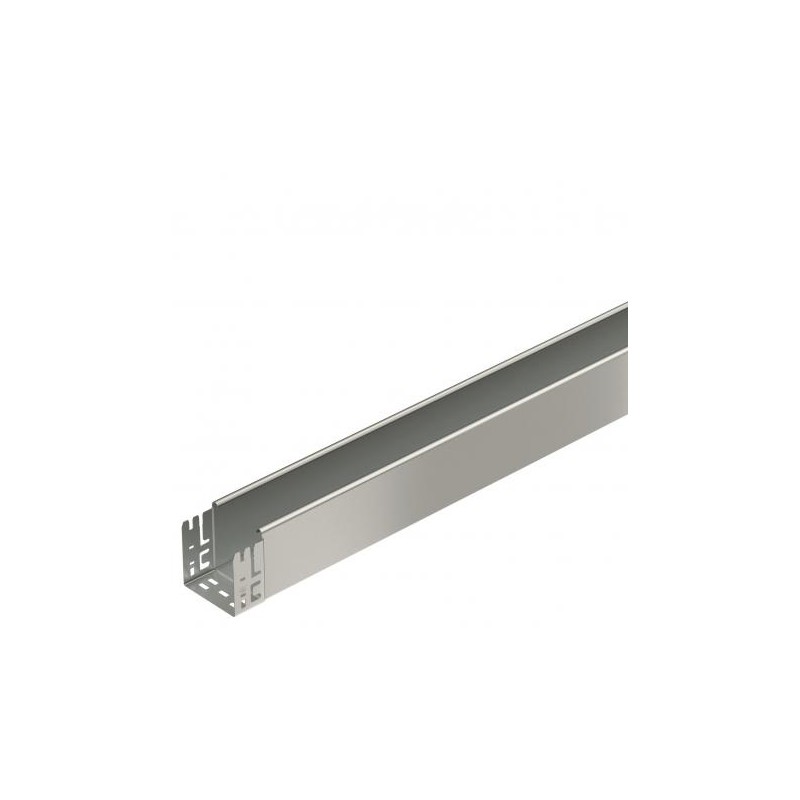

OBO BETTERMANN MKSMU 110 A2 6059416 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

6059416 OBO BETTERMANN TRAY MKSMAGIC BLIND 110 VA4301

Reference: MKSMU 110 A2

Code: 6059416

Manufacturer: OBO BETTERMANN

Description:

TRAY MKSMAGIC BLIND 110 VA4301
Cable tray MKS-Magic® 110, unperforated A2. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

Categories:

  • Cable carrying systems > Cable tray/wide span cable tray
  • OBO BETTERMANN > KTS cable support systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 306,29 €

Unit Price: 102,096 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate14,4194 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension110x100x3050
Dimension B100 mm
Height110 mm
Length3050 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialStainless steel 1.4301
Mounting perforation in baseno
NATO hole patternno
Plate thickness1 mm
Rustproof steel, pickledno
Side perforationno
Support spacing 1.5 m1,85 kN/m
Support spacing 2.0 m1,3 kN/m
Support spacing 2.5 m0,75 kN/m
Support spacing 3.0 m0,6 kN/m
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section108 cm²
Usable cross-section10800 mm²
Usable length3000 mm
Wide-span versionno
Width100 mm
With coverno
