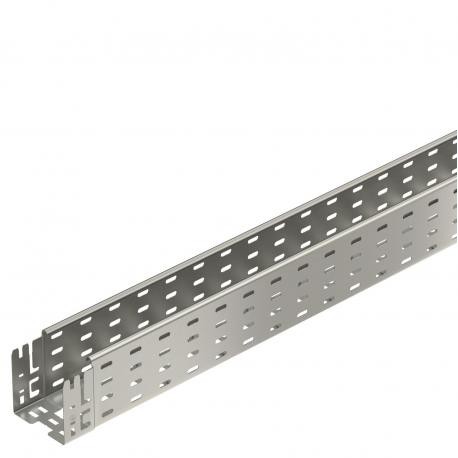

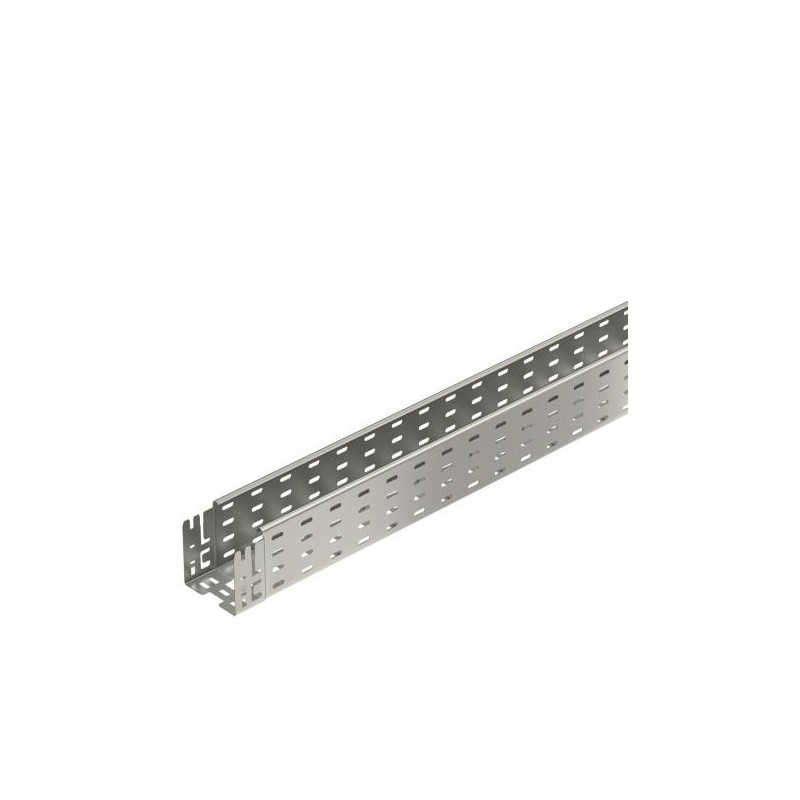

OBO BETTERMANN MKSM 110 A2 6059190 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MKSM 110 A2 6059190 OBO BETTERMANN TRAY MKSMAGIC 110 VA4301

Reference: MKSM 110 A2

Code: 6059190

Manufacturer: OBO BETTERMANN

Description:

TRAY MKSMAGIC 110 VA4301
MKSM MKSM 110 A2 cable tray, perforated, with needle. 110x100x3050 Stainless steel 1.4301, A2, 1.4301, Polished, with post-treatment
Cable tray MKS-Magic® 110 A2. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Categories:

  • Cable carrying systems > Cable tray/wide span cable tray
  • OBO BETTERMANN > KTS cable support systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 292,58 €

Unit Price: 97,526 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate13,2277 kg CO2e / 1 Meter
Colourstainless steel
Connector versionIntegrated connector
Dimension110x100x3050
Dimension B100 mm
Dimension L30 mm
Dimension y62 mm
Height110 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialStainless steel 1.4301
Mounting perforation in baseyes
NATO hole patternno
Plate thickness1 mm
Rustproof steel, pickledno
Side perforationyes
Support spacing 1.5 m2 kN/m
Support spacing 2.0 m1,5 kN/m
Support spacing 2.5 m1,07 kN/m
Support spacing 3.0 m0,7 kN/m
SurfaceBright, treated
Type of connector, cable support systemClick fastening
Usable cross-section108 cm²
Usable cross-section10800 mm²
Usable length3000 mm
Wide-span versionno
Width100 mm
With coverno
