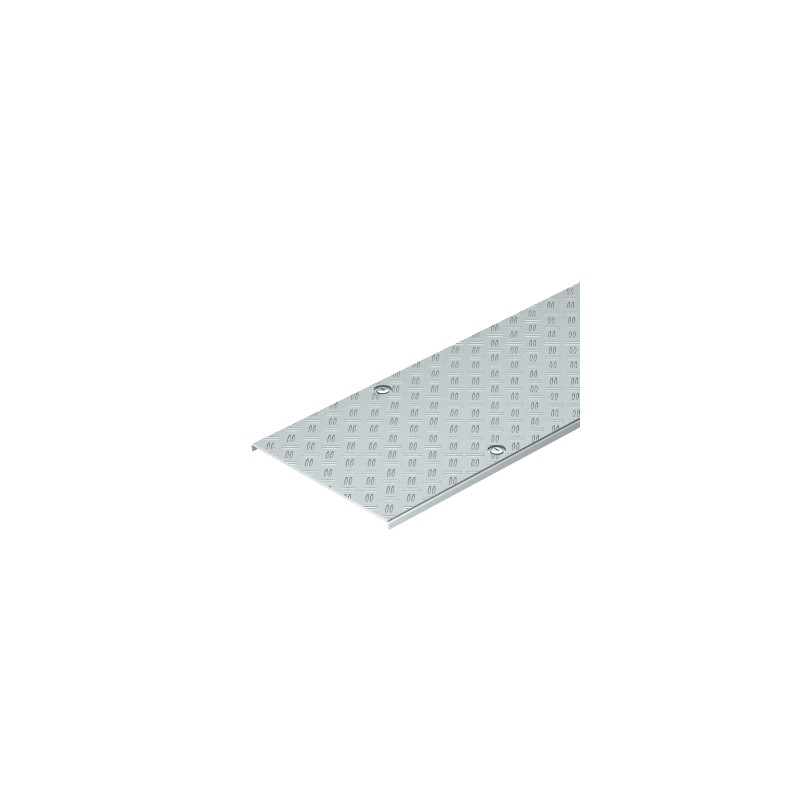

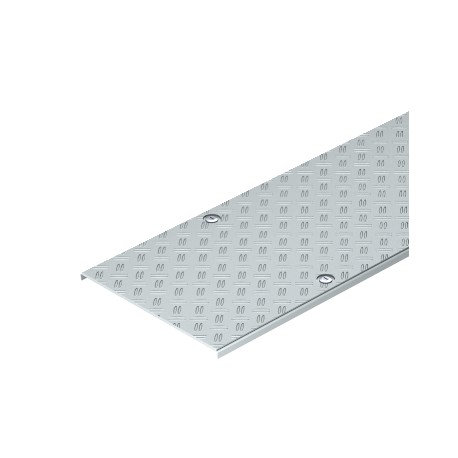

6049185 OBO BETTERMANN CAP RIBBED DF BKR30 FS TO THE
DF BKR30 FS AL
6049185
OBO BETTERMANN
3
CAP RIBBED DF BKR30 FS TO THE
Cover with chequer plate and turn buckle FS. Cable tray cover for the walkable BKRS cable tray system. The basic cover is strip galvanised in a material thickness of 2 mm with additional aluminium chequer riveted on in a thickness of 4 mm, sturdy and non-slip. Turn buckle fastening with a turn buckle distance of 500 mm.When the cover is used under wind, draught or pressure impacts, additional security measures are required.
Cable carrying systems > Cover for cable support system
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 49,0491 kg CO2e / 1 Meter |
|---|---|
| Colour | aluminium |
| Dimension | 300x3000 |
| Dimension B | 300 mm |
| Dimension L | 3000 mm |
| Fastening type | Sash lock |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Aluminium/Steel |
| Number of turn buckles | 14 St. |
|---|---|
| Plate thickness | 0,24 in |
| Plate thickness | 6 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Width | 300 mm |
| Width | 12 in |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
| 6049185 OBO BETTERMANN CAP RIBBED DF BKR30 FS TO THE | 50 Kbytes |
|
