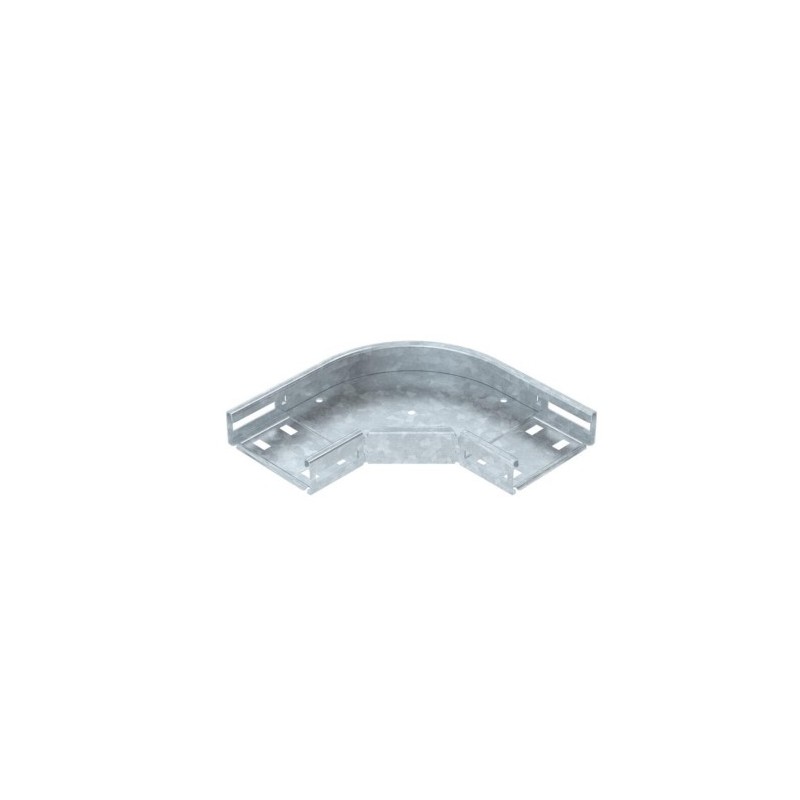

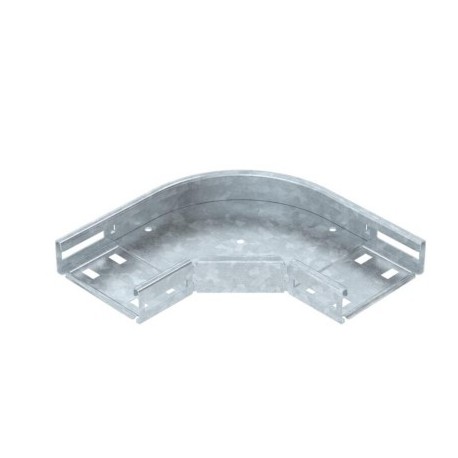

6036510 OBO BETTERMANN 90° curve for horizontal branching, accessory for interlocking and screw-on cable tra..
6036510
OBO BETTERMANN
90° curve for horizontal branching, accessory for interlocking and screw-on cable trays with 35 mm flange. Screwed connection with FRS flat round screws and M6 combination nuts. For indoor and outdoor use. The fastening material must be ordered separately.
90° bend 35 FT. 90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Horizontal |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,3803 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 35x100 |
| Dimension B | 100 mm |
| Height | 35 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Material thickness, floor plate | 0,8 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Permitted temperature range, max. | 120 °C |
|---|---|
| Permitted temperature range, min. | -20 °C |
| Plate thickness | 0,8 mm |
| Rail thickness | 1,25 mm |
| Recommended quantity of bolts | 6 St. |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Surface | Hot-dip galvanised |
| Type | Bend, rigid |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 100 mm |
| With cover | no |
