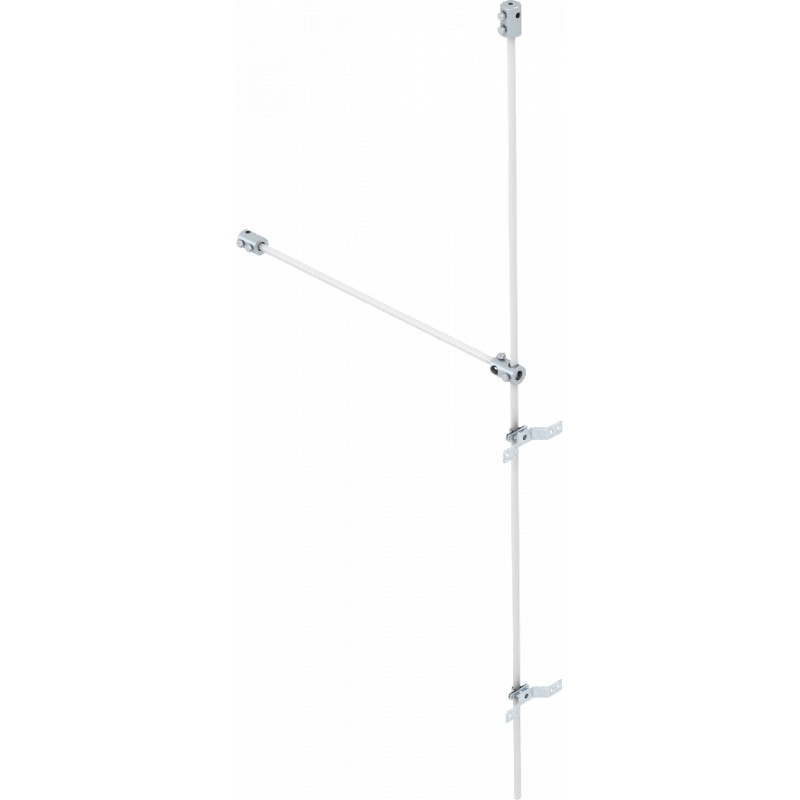

OBO BETTERMANN 101 3-ES-16 5408976 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

5408976 OBO BETTERMANN SET ISO-COMBI SET TRIANGUL

Reference: 101 3-ES-16

Code: 5408976

Manufacturer: OBO BETTERMANN

Description:

SET ISO-COMBI SET TRIANGUL
Insulated lightning protection set, 3-corner fastening. 3-corner fastening for an insulated air-termination unit at the separating distance s.• Mounting on walls and roof structures with two fastening plates • For maintenance of the separation distance to electrically conductive partsaccording to VDE 0185-305-3 (IEC 62305-3)• Acceptance of air-termination rods and round conductors with 8, 16 and 20 mm diameter• UV-resistant and weatherproof• Continuous temperature range -50 °C to +100°C• Material factor km = 0.7

Categories:

  • Earthing, lightning and surge protection > Air-termination equipment for lightning protection
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate17,0866 kg CO2e / 1 Piece
Dimension1500x750x175
Dimension d min.16 mm
Dimension H1500 mm
Dimension L750 mm
Width175 mm
