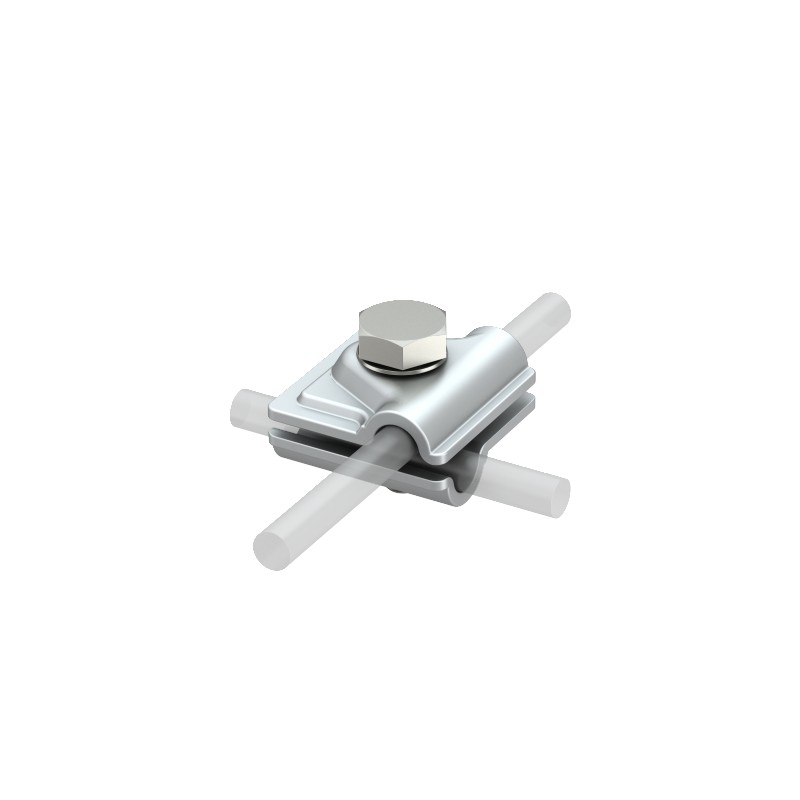

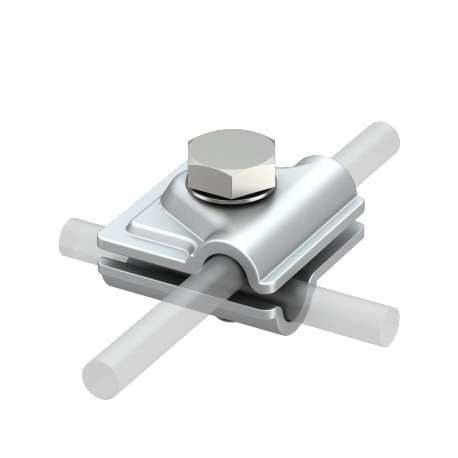

5311713 OBO BETTERMANN QUICK CONNECTOR 249 B ALU
Reference: 249 B ALU
Code: 5311713
Manufacturer: OBO BETTERMANN
Description:
QUICK CONNECTOR 249 B ALU
Vario quick connector ALU. • For T, cross and parallel connectors• Quick installation using hexagonal bolt M10 x 30, high-grade stainless steel• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
Categories:
- Earthing, lightning and surge protection > Connector for lightning protection
- OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0175 kg CO2e / 1 Piece |
|---|---|
| Dimension | 44x44mm |
| Dimension A | 44 mm |
| Fit | Rd 8-10 mm |
| Intermediate plate | no |
| Lightning current carrying capacity | H/100 kA |
| Material | Aluminium |
| Round conductor diameter, conductor 1, max. | 10 mm |
|---|---|
| Round conductor diameter, conductor 1, min. | 8 mm |
| Round conductor diameter, conductor 2, max. | 10 mm |
| Round conductor diameter, conductor 2, min. | 8 mm |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Type of connector | Multipurpose connection clamp |
| Type of fastening screw | Hexagonal bolt |
