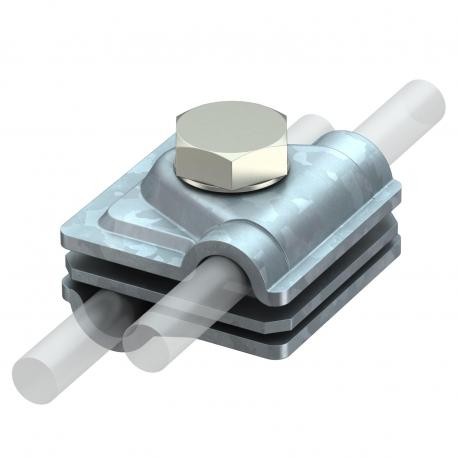

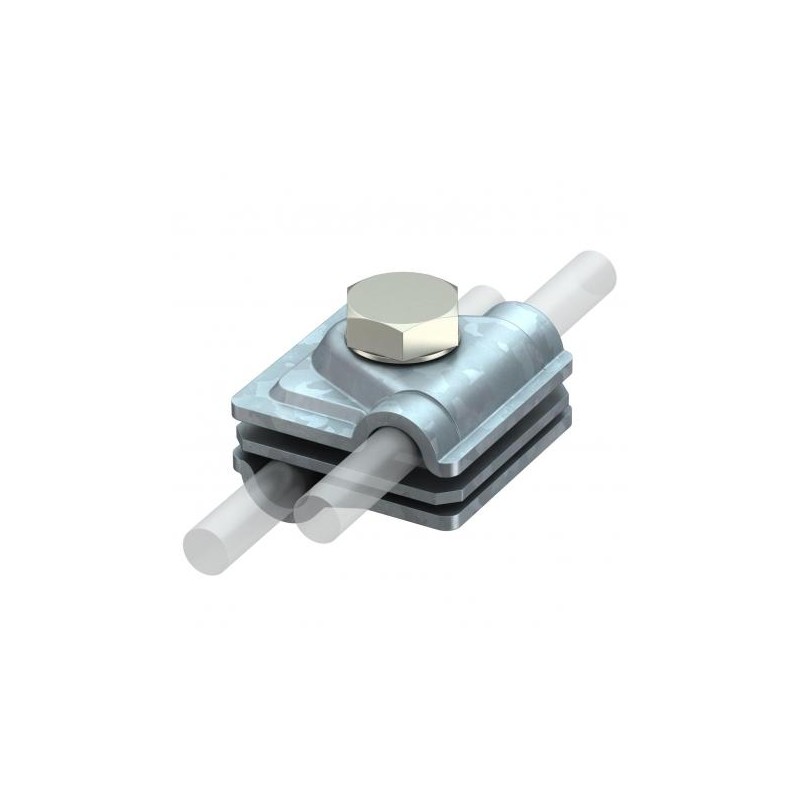

5311410 OBO BETTERMANN QUICK CONNECTOR 249 6-10 ST
249 6-10 ST
5311410
OBO BETTERMANN
20
QUICK CONNECTOR 249 6-10 ST
Variable earthing connector Rd 6-8/8-10 mm FT. • For T, cross-over and parallel connections with adapter plates• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel• With sprung washer to DIN 137• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
Earthing, lightning and surge protection > Connector for lightning protection
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,4324 kg CO2e / 1 Piece |
|---|---|
| Dimension | 40x40mm |
| Dimension A | 40 mm |
| Fit | RD 6-8 / 8-10 mm |
| Intermediate plate | yes |
| Lightning current carrying capacity | H/100 kA |
| Material | Steel |
| Round conductor diameter, conductor 1, max. | 8 mm |
| Round conductor diameter, conductor 1, min. | 6 mm |
|---|---|
| Round conductor diameter, conductor 2, max. | 10 mm |
| Round conductor diameter, conductor 2, min. | 8 mm |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Surface | Hot-dip galvanised |
| Type of connector | Multipurpose connection clamp |
| Type of fastening screw | Hexagonal bolt |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
| 5311410 OBO BETTERMANN QUICK CONNECTOR 249 6-10 ST | 52 Kbytes |
|
