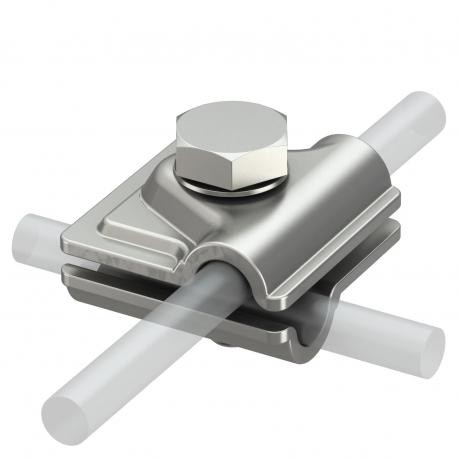

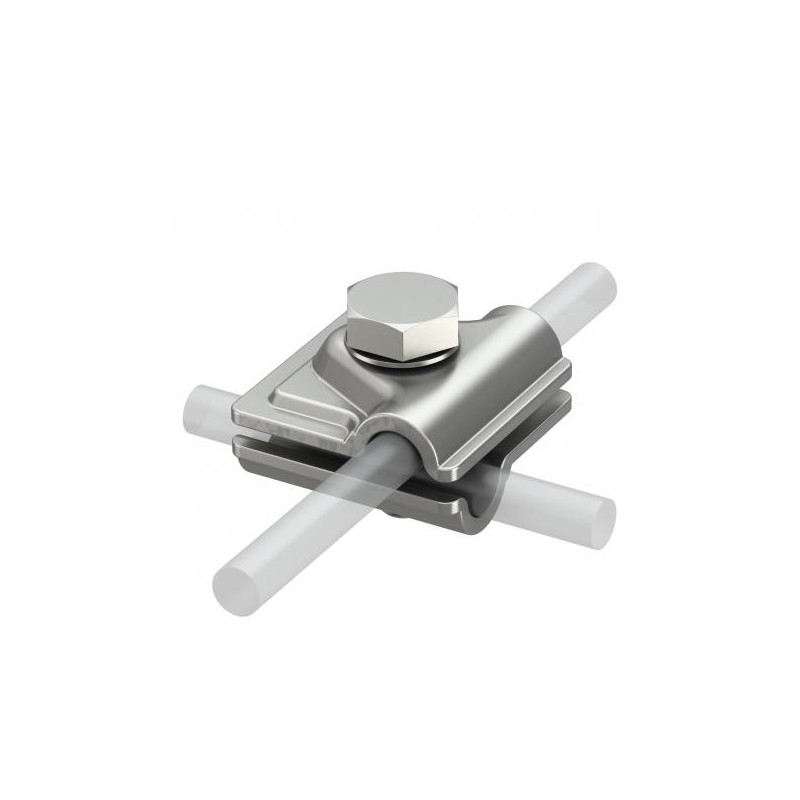

OBO BETTERMANN 249 8-10 V4A 5311404 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

5311404 OBO BETTERMANN QUICK CONNECTOR 249 8-10 V4A

Reference: 249 8-10 V4A

Code: 5311404

Manufacturer: OBO BETTERMANN

Description:

QUICK CONNECTOR 249 8-10 V4A
Vario quick connector A4. • For T, cross-over and parallel connections• Complete component made of A4• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel• Meets the requirements of VDE 0185-305 (IEC 62305)

Categories:

  • Earthing, lightning and surge protection > Connector for lightning protection
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 104,82 €

Unit Price: 10,482 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate0,6844 kg CO2e / 1 Piece
ConnectionRound conductor
Dimension40x40mm
Dimension A40 mm
FitRd 8-10 mm
Intermediate plateno
Length40 mm
Lightning current carrying capacityH/100 kA
MaterialStainless steel 1.4571/1.4404
Round conductor diameter, conductor 1, max.10 mm
Round conductor diameter, conductor 1, min.8 mm
Round conductor diameter, conductor 2, max.10 mm
Round conductor diameter, conductor 2, min.8 mm
Short-circuit current (50 HZ)(1 s;≤300°C)1,4 kA
Suitable for connectionRound conductor Rd 8–10 / Rd 8–10
TBS applicationConnection system
Type of connectorMultipurpose connection clamp
Type of fastening screwHexagonal bolt
