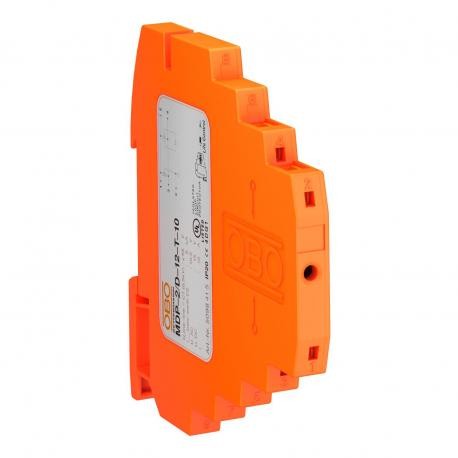

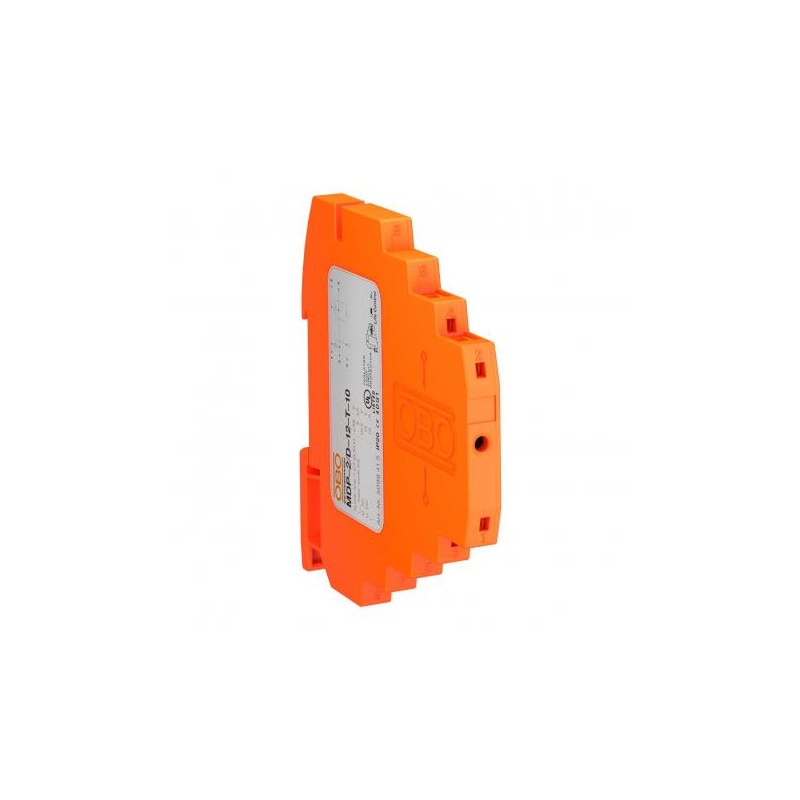

5098415 OBO BETTERMANN ARRESTER MDP-2 D-12-T-10
MDP-2 D-12-T-10
5098415
OBO BETTERMANN
ARRESTER MDP-2 D-12-T-10
Series protection device, 2-pole, 12 V version. Lightning barrier with test function; 12 V version • Rated load current 10 A• Protection device for multi-wire systems• Direct shield earthing and screwless connection terminals• Space-saving width of just 8.7 mm • Protection circuit testable with Life Control• High bandwidth to 100 MHz• UL-listed (4DG1) Application: Universal use on 35 mm DIN profile rail in any standard distribution housing.
Earthing, lightning and surge protection > Surge protection device for data networks/MCR-technology
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | UL |
|---|---|
| Capacity (wire-wire) | <40 pF |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2794 kg CO2e / 1 Piece |
| Connection cross-section, flexible, max. | 2,5 mm² |
| Connection cross-section, flexible, min. | 0,14 mm² |
| Connection cross-section, multi-wire, max. | 1,5 mm² |
| Connection cross-section, multi-wire, min. | 0,14 mm² |
| Connection cross-section, rigid, max. | 2,5 mm² |
| Connection cross-section, rigid, min. | 0,14 mm² |
| Cut-off frequency | 100 MHz |
| Dimension | 12V |
| Earthing via: | DIN rail |
| Impulse durability wire-wire | C1: 0,5 kV / 0,25 kA (8/20µs) |
| Insertion loss | ≤3 dB |
| Insulation resistance | >100 MΩ |
| Kategorie | Type 1+2+3 / D1+C2+C1 |
| Lightning protection zone LPZ | 0→3 |
| Maximum continuous voltage AC | 10,5 V |
| Maximum continuous voltage DC | 15 V |
|---|---|
| Nominal load current AC | 0,7 A |
| Nominal load current DC | 10 A |
| Nominal voltage | 12 V |
| Number of poles | 2 |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Plug-in system | Terminal |
| Protection level wire-earth | <800 V |
| Protection level wire-wire | <55 V |
| Protection rating | IP20 |
| Screening | Direct |
| Shielding connection available | yes |
| Signalling on device | Readable |
| SPD to IEC 61643-21 | Class I+II+III / D1+C2+C1 |
| Testing standard | IEC 61643-21 |
| Total discharge current (10/350) | D1: 1 kA |
| Total discharge current (8/20) | 5 kA |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
| 5098415 OBO BETTERMANN ARRESTER MDP-2 D-12-T-10 | 52 Kbytes |
|
