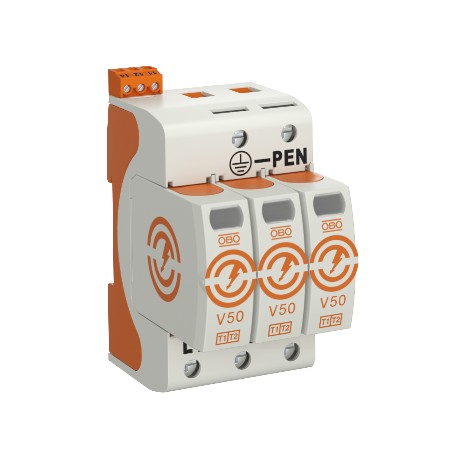

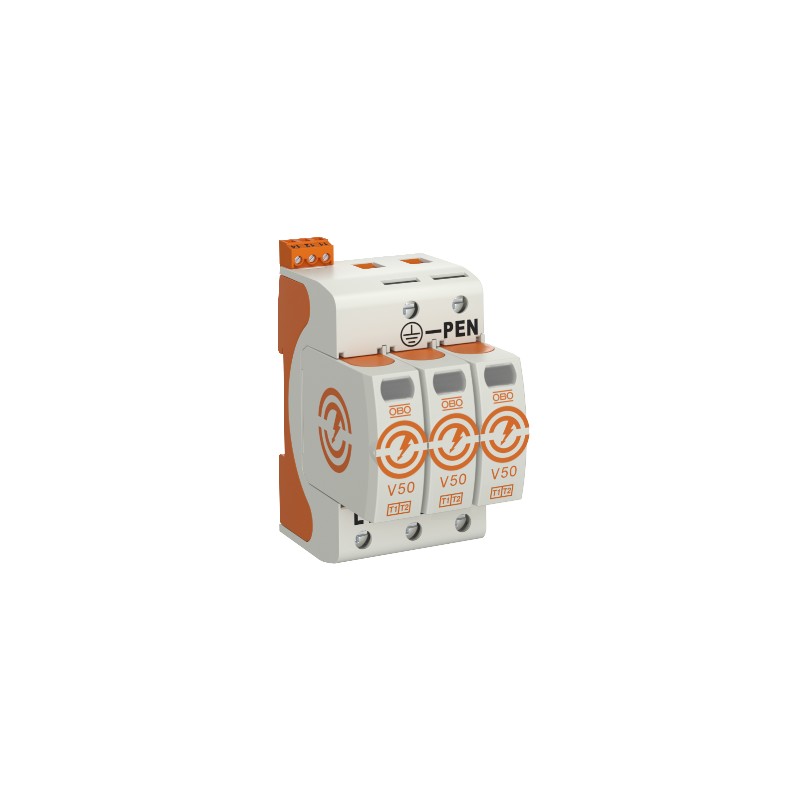

V50-3+FS-385 5093580 OBO BETTERMANN ARRESTER 1+2 V50-3+FS-385
V50-3+FS-385
5093580
OBO BETTERMANN
ARRESTER 1+2 V50-3+FS-385
V50 V50-3+FS-385.3 pole combined discharger w/remote signaling 385V Polyamide, PA,
Earthing, lightning and surge protection > Combined arrester for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲• For the equipotential bonding of lightning current to VDE 0185-305 (IEC 62305)
• Lightning current discharge capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total
• Modular, plug-in arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling (FS) variants have a potential-free changeover contact for remote signalling
Application: Lightning current equipotential bonding for buildings of class III and IV.
| Feature Name | Feature Value |
|---|---|
| System configuration TN (EF009928) | Yes |
| System configuration TN-C (EF009929) | Yes |
| Number of poles (EF001391) | 3 |
| Lightning impulse current (10/350 µs) (EF000421) | 12.5 kA |
| Max. continuous voltage AC (EF004198) | 385 V |
| Nominal voltage AC (EF004220) | 350 V |
| Voltage protection level (EF003525) | 1.7 kV |
| Voltage protection level L-N (EF004236) | 1.7 kV |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Construction size (EF002566) | 3 modular spacing |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 35 mm² |
| Signalling at the device (EF004241) | Optic |
| Integrated backup fuse (EF008797) | No |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
| 5093580 OBO BETTERMANN ARRESTER 1+2 V50-3+FS-385 | 63 Kbytes |
|
