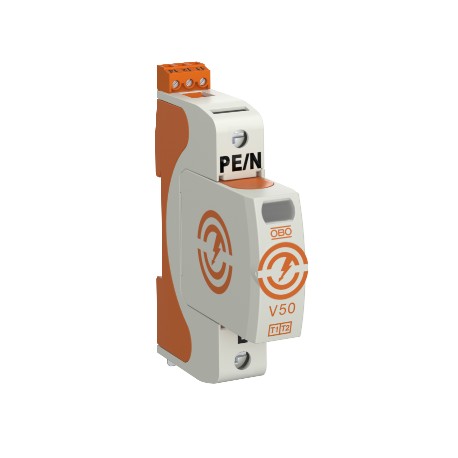

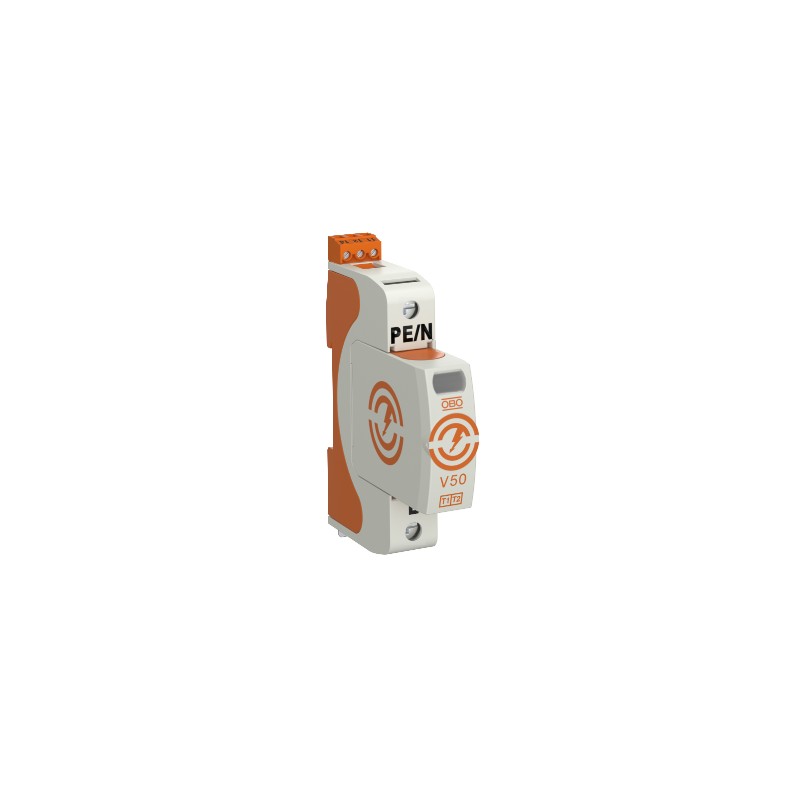

5093546 OBO BETTERMANN ARRESTER 1+2 V50-1+FS-320
V50-1+FS-320
5093546
OBO BETTERMANN
ARRESTER 1+2 V50-1+FS-320
Earthing, lightning and surge protection > Combined arrester for power supply systems
TBS Transient and lightning protection systems - OBO BETTERMANN
* Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
More info
▲• For the equipotential bonding of lightning current to VDE 0185-305 (IEC 62305)
• Lightning current discharge capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) in total
• Modular, plug-in arrestor with dynamic cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Halogen-free plastic (UL 94 V-0)
• The remote signalling (FS) variants have a potential-free changeover contact for remote signalling
Application: Lightning current equipotential bonding for buildings of class III and IV.
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF Katalog-TBS 2018 EN.pdf | 47 Mbytes |
|
| 5093546 OBO BETTERMANN ARRESTER 1+2 V50-1+FS-320 | 53 Kbytes |
|
