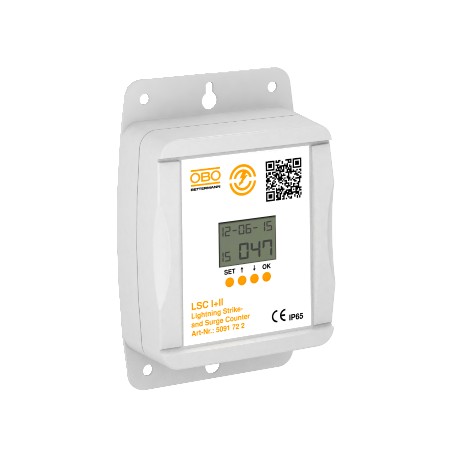

OBO BETTERMANN LSC I+II 5091722 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

5091722 OBO BETTERMANN COUNTER-RAYS DATE AND TIME

Reference: LSC I+II

Code: 5091722

Manufacturer: OBO BETTERMANN

Description:

COUNTER-RAYS DATE AND TIME
Lightning strike and surge counter. The LSC I+II lightning current meter measures and permanently saves pulse currents, together with the date and time. This ensures constant monitoring in order to notice if any lightning has struck the lightning protection system. Should this be the case, then the lightning protection system must be maintained according to VDE 0185-305 (IEC 62305).• Saving and display of time and date• Usable both inside and outside due to its protection class of IP65• Cable clip for round conductor or flat conductor• Direct mounting on the conductor or the PE conductor of the surge protective device• Long lifespan of the internal lithium batteries• LCD display• Internal battery• Tested according to VDE 0185-561-6 (IEC 62561-6)

Categories:

  • Earthing, lightning and surge protection > Lightning current measuring system
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 524,74 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Dimension140x89x43
Dimension144x88x44
MaterialPlastic
Measuring range, max.100 kA
Measuring range, min.1 kA
Number of sensors1
Permitted temperature range, max.60 °C
Permitted temperature range, min.-20 °C
Protection ratingIP65
Signalling on deviceVisual

DATASHEET - PDF

Title
Size
Type
5091722 OBO BETTERMANN COUNTER-RAYS DATE AND TIME
55 Kbytes
PDF CATALOGUE SURGE PROTECTION OBO EN
24 Mbytes
