OBO BETTERMANNTBS Transient and lightning protection systems - OBO BETTERMANN5084020 OBO BETTERMANN BASIC PROTECTION P/LSA PLUS

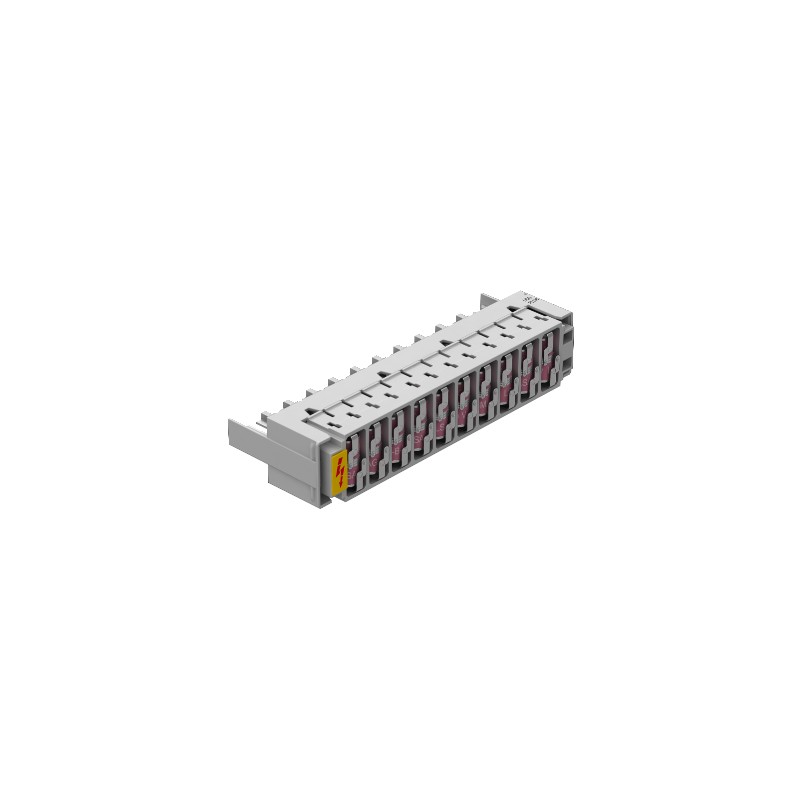

OBO BETTERMANN LSA-B-MAG 5084020 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

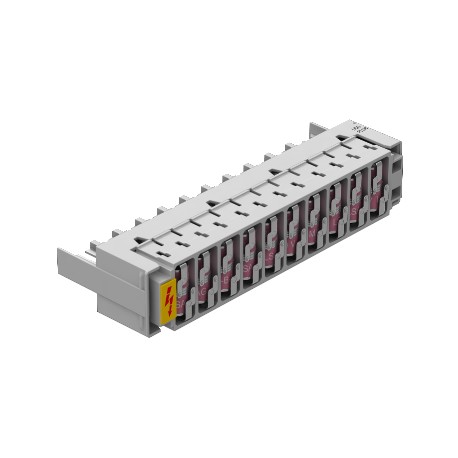

5084020 OBO BETTERMANN BASIC PROTECTION P/LSA PLUS

Reference: LSA-B-MAG

Code: 5084020

Manufacturer: OBO BETTERMANN

Description:

BASIC PROTECTION P/LSA PLUS
LSA basic protection magazine. LSA basic protection magazine for use in multi-core data cable systems, MCR systems and telephone switchboards. • Basic protection• Equipped with 20 gas arresters • Max. voltage: 180 VApplication: Directly on LSA-Plus separating strips or connection rails (e.g. OBO LSA-A-LEI (5084 00 8) or OBO LSA-T-LEI (5084 01 2).Basic protection magazine to protect 10 two-cores.

Categories:

  • Earthing, lightning and surge protection > Lightning current arrester for data networks/MCR-technology
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 80,51 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Capacity (wire-earth)< 10 pF
Capacity (wire-wire)< 10 pF
CO2 Footprint (GWP) Cradle-to-Gate0,0845 kg CO2e / 1 Piece
Dimension180V
Impulse durability wire-earthC2: 10 kV / 5 kA (8/20µs)
Impulse durability wire-wireC2: 10 kV / 5 kA (8/20µs)
Insulation resistance> 1 GΩ
KategorieType 1+2 / D1+C2
Lightning impulse current0,5 kA
Lightning protection zone LPZ0→2
Maximum continuous voltage AC120 V
Maximum continuous voltage DC180 V
Nominal load current AC0,7 A
Nominal load current DC1 A
Number of poles20
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Plug-in systemOther
Protection level @ C1<750 V
Protection ratingIP20
SPD to IEC 61643-21Class I+II / D1+C2
Testing standardIEC 61643-21
Total discharge current (10/350)1 kA
Total discharge current (8/20)10 kA
Version forBasic protection
