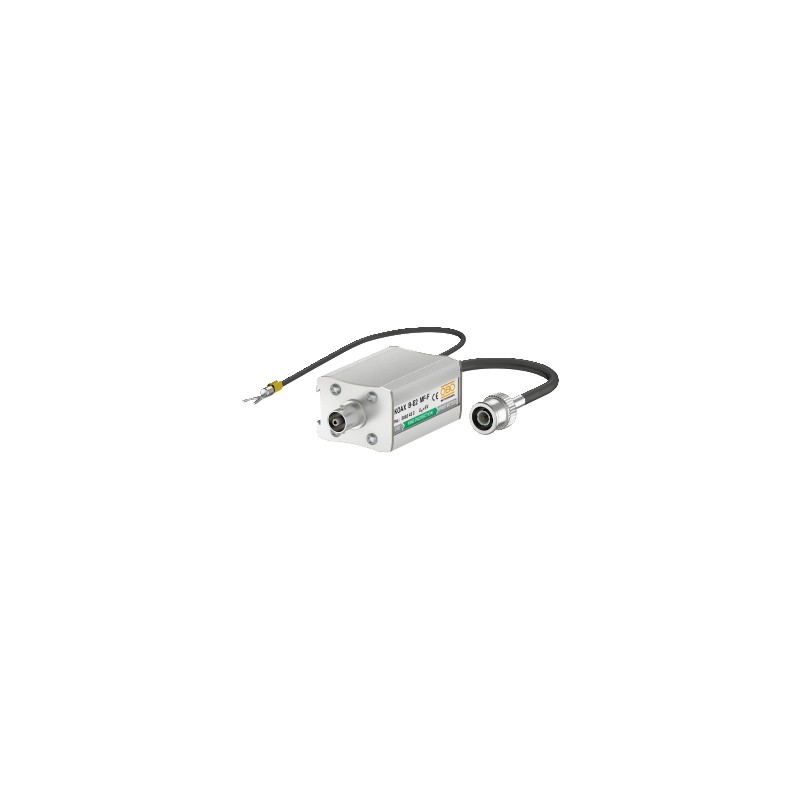

OBO BETTERMANN KOAX B-E2 MF-F 5082432 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

5082432 OBO BETTERMANN COAXIAL PROTECTION KoaxB-E2 FF-F

Reference: KOAX B-E2 MF-F

Code: 5082432

Manufacturer: OBO BETTERMANN

Description:

COAXIAL PROTECTION KoaxB-E2 FF-F
Fine protection for 10Base2-/10Base5 networks. Data line protection device for coaxial Ethernet network systems • In aluminium housing • BNC connector m/f• Simple mounting with adapter plug• Two-stage protection circuit • DIN rail mounting with DLS-BS accessories (5082 38 2)Application: Protecting video signals; cameras and/or CCTV units, Cheapernet, 10BASE2, 10BASE5• In aluminium housing • BNC connector for Cheapernet, 10BASE2 • Simple mounting with adapter connector• Two-stage protection circuit

Categories:

  • Earthing, lightning and surge protection > Surge protection device for data networks/MCR-technology
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 76,41 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Capacity (wire-earth)<100 pF
Capacity (wire-wire)<100 pF
CO2 Footprint (GWP) Cradle-to-Gate1,701 kg CO2e / 1 Piece
Cut-off frequency70 MHz
Dimension6.2V
Earthing via:Connection cable
Impulse durability wire-earthC2: 10 kV / 5 kA (8/20µs)
Impulse durability wire-wireC1: 1 kV / 0,5 kA (8/20µs)
Insertion loss≤1 dB
Insulation resistance>1 GΩ
KategorieType 2+3 / C2+C1
Lightning protection zone LPZ1→3
Maximum continuous voltage AC4,2 V
Maximum continuous voltage DC6 V
Nominal load current AC0,7 A
Nominal load current DC1 A
Number of poles1
Permitted temperature range, max.80 °C
Permitted temperature range, min.-20 °C
Plug-in systemBNC
Protection level wire-earth<600 V
Protection level wire-wire<40 V
Protection ratingIP40
Return loss≥14 dB
ScreeningDirect
Shielding connection availableyes
Signalling on deviceWithout
SPD to IEC 61643-21Class II+III / C2+C1
Testing standardIEC 61643-21
Total discharge current (8/20)10 kA
Version forFine protection
Wave resistance75 Ω
