Images are for illustrative purposes only. Please refer to data sheet for details.

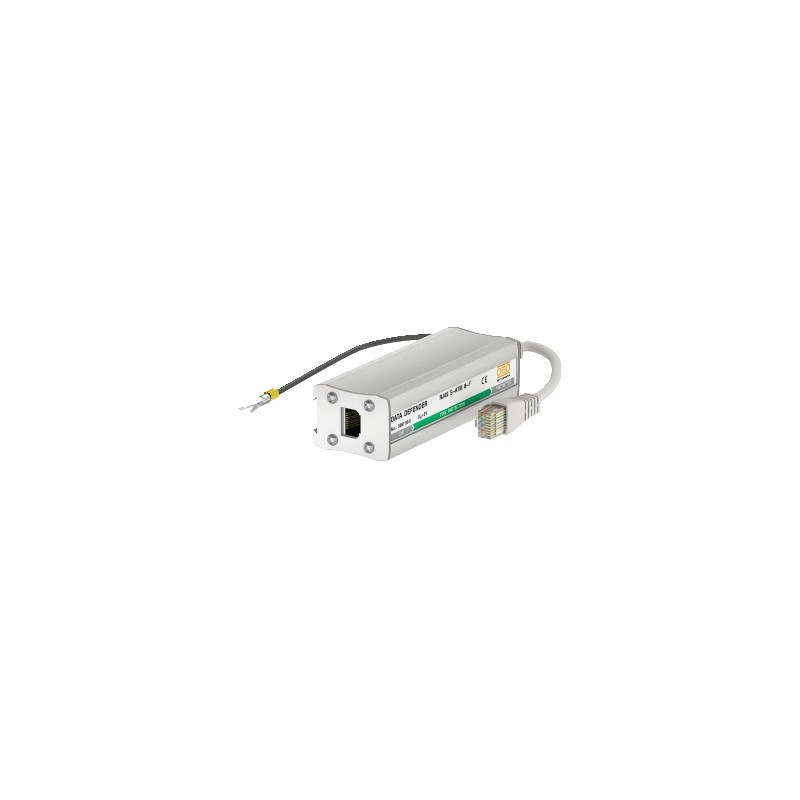

5081990 OBO BETTERMANN DATA PROTECTION RJ45 S-ATM8-IND
Reference: RJ45 S-ATM 8-F
Code: 5081990
Manufacturer: OBO BETTERMANN
Description:
DATA PROTECTION RJ45 S-ATM8-IND
Fine protection 8-F for Ethernet networks (Class D/CAT 5). Universal data cable protection device for network technology and telecommunication systems • In aluminium housing • Protection for 8 cores • With two-stage protective circuit • Simple mounting• With RJ45 Western connector• Incl. 150 mm connection cable with RJ45 connectors• Cat 5e network technology, 10BaseT, 100BaseT, 1000BaseT• DIN rail mounting with accessories DLS-BS (5082 38 2)Application: For analogue, ISDN, DSL systems, Ethernet Twisted Pair.• Usable in networks of Class D or CAT 5e• Can be locked onto DIN profile rails or mounted directly at the terminal• Simple installation using RJ45 connection technology• Optimised transmission properties
Categories:
- Earthing, lightning and surge protection > Surge protection device for data networks/MCR-technology
- OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
- More Info
- Reviews
MORE INFO
| Arrestor monitoring | no |
|---|---|
| Capacity (wire-earth) | <10 pF |
| Capacity (wire-wire) | <50 pF |
| Channel performance Ansi/EA | CAT 5e |
| Channel performance ISO/IEC | Class D |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,5752 kg CO2e / 1 Piece |
| Cut-off frequency | 155 MHz |
| Dimension | 6.2V |
| Earthing via: | Connection cable |
| Impulse durability wire-earth | C2: 3 kV / 1,5 kA (8/20µs) |
| Impulse durability wire-wire | C2: 3 kV / 1,5 kA (8/20µs) |
| Insertion loss | <3 @ 150 MHz dB |
| Insulation resistance | >1 GΩ |
| Kategorie | Type 2+3 / C2+C1 |
| Lightning protection zone LPZ | 1→3 |
| Maximum continuous voltage AC | 4,2 V |
|---|---|
| Maximum continuous voltage DC | 6 V |
| Number of poles | 8 |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Plug-in system | RJ45 8(8) |
| Protection level wire-earth | <900 V |
| Protection level wire-wire | <40 V |
| Protection rating | IP40 |
| Screening | Direct |
| Shielding connection available | yes |
| SPD to IEC 61643-21 | Class II+III / C2+C1 |
| Testing standard | IEC 61643-21 |
| Total discharge current (8/20) | 7,5 kA |
| Version for | Fine protection, 8 wires + shield |
